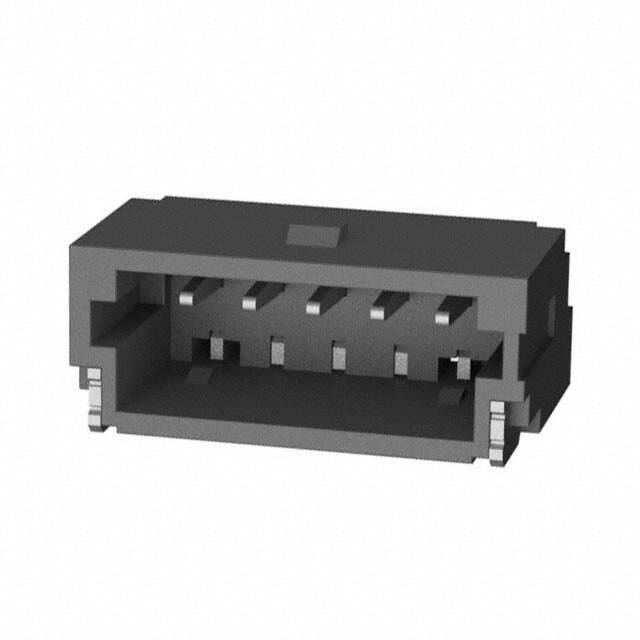

T1M-05-T-S-RA-TR This Samtec Inc. header features 5 positions with a 1mm pitch and a right-angle surface mount design. It offers a 3.3A current rating and a Tin contact finish.
Mfr Part #:

T1M-05-T-S-RA-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This Samtec Inc. header features 5 positions with a 1mm pitch and a right-angle surface mount design. It offers a 3.3A current rating and a Tin contact finish.
✓ Total Stock: 112 pcs
$ Price Range: $1.00

T1M-05-T-S-RA-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-05-T-S-RA-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulator Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

T1M-05-T-S-RA-TR Description

Short technical summary and product information.

The Samtec Inc. T1M-05-T-S-RA-TR is a 1mm pitch header designed for surface mount, right-angle applications. It features 5 positions, all loaded, with a single row configuration. The connector is rated for 3.3A per contact and 250VAC/353VDC.



The header has a black insulator made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The contact material is Phosphor Bronze with a Tin finish. The mounting type is Surface Mount, Right Angle, and the termination style is Solder. The operating temperature range is -55°C to 85°C.



This shrouded header with 4 walls is suitable for board-to-cable/wire connections. It is designed for applications requiring a compact, right-angle connector solution with a 1mm pitch.

T1M-05-T-S-RA-TR Quick Information

Product Type: Header
Canonical Name: Samtec Inc. T1M-05-T-S-RA-TR Header
Subcategory: Header

T1M-05-T-S-RA-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-05-T-S-RA-TR Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-05-T-S-RA-TR Features

  • 5 positions, 1mm pitch header.
  • Right-angle surface mount design.
  • 3.3A current rating per contact.
  • Phosphor Bronze contacts with Tin finish.
  • UL94 V-0 flammability rating.

T1M-05-T-S-RA-TR Applications

  • Ideal for compact board-to-wire connections.
  • Suitable for space-constrained designs.
  • Used in general electronic assemblies.
  • Requires right-angle mounting.

T1M-05-T-S-RA-TR FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the T1M-05-T-S-RA-TR header have?

The header has 5 positions.

What is the pitch of the T1M-05-T-S-RA-TR connector?

The pitch is 1.00mm.

What is the current rating for the T1M-05-T-S-RA-TR header?

The current rating is 3.3A per contact.

What is the voltage rating of the T1M-05-T-S-RA-TR?

The voltage rating is 250VAC, 353VDC.

What type of mounting does the T1M-05-T-S-RA-TR use?

It uses a Surface Mount, Right Angle mounting type.
