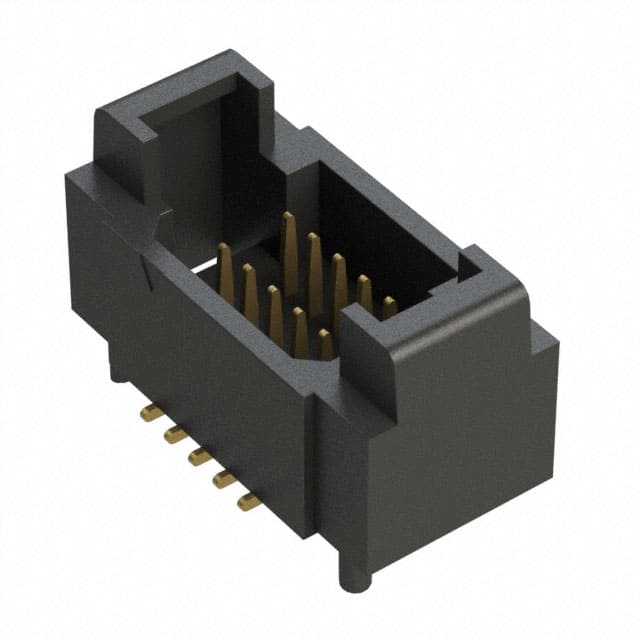

T1M-05-GF-DV The T1M-05-GF-DV is a 10-pin, 2-row, surface mount header with a 1.00mm pitch and shrouded design. It features locking ramp fastening and is rated for 3.3A per contact.
Mfr Part #:

T1M-05-GF-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The T1M-05-GF-DV is a 10-pin, 2-row, surface mount header with a 1.00mm pitch and shrouded design. It features locking ramp fastening and is rated for 3.3A per contact.
✓ Total Stock: 30 pcs
$ Price Range: $1.35 - $2.37

T1M-05-GF-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-05-GF-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

T1M-05-GF-DV Description

Short technical summary and product information.

The T1M-05-GF-DV from Samtec Inc. is a 10-position, 2-row, surface mount header with a 1.00mm pitch. It is a board-to-cable/wire style connector with a shrouded 4-wall design and locking ramp fastening for secure mating. The header is fully loaded with 10 male pin contacts made of phosphor bronze with a tin finish (3.00µin).\n\nElectrical ratings include 3.3A per contact and 250VAC/353VDC. The insulation is molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating and natural color. The operating temperature range spans -55°C to 85°C, suitable for a wide variety of environments.\n\nThe component is supplied in tape and reel packaging for automated surface mount assembly. The contacts are square in shape and the termination is solder. Overall insulation height is 6.80mm.

T1M-05-GF-DV Quick Information

Product Type: Header, Male Pins
Series: T1M
Canonical Name: Samtec T1M-05-GF-DV Header, Male Pins, 10 Positions, 1.00mm Pitch, Surface Mount, Shrouded
Subcategory: Male Pins

T1M-05-GF-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-05-GF-DV Estimated Pricing

Qty Low High
1+ $2.37 $2.37
25+ $2.22 $2.22
50+ $2.11 $2.11
100+ $2.03 $2.03
400+ $2.03 $2.03
800+ $1.95 $1.95
2,400+ $1.62 $1.62
4,800+ $1.35 $1.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-05-GF-DV Features

  • 10-position, 2-row, 1.00mm pitch header.
  • Surface mount with solder termination.
  • Shrouded design with locking ramp fastening.
  • Rated for 3.3A and 250VAC/353VDC.
  • Wide -55°C to 85°C operating range.

T1M-05-GF-DV Applications

  • Connector for board-to-cable/wire applications.
  • Suitable for compact electronic devices.
  • Used in automated SMT assembly processes.
  • Ideal for high-density interconnect designs.

T1M-05-GF-DV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the T1M-05-GF-DV have?

It has 10 positions, all loaded.

What is the pitch of the T1M-05-GF-DV?

1.00mm (0.039 in.)

What is the current rating?

3.3A per contact

What is the voltage rating?

250VAC, 353VDC

What mounting type is used?

Surface Mount

How many rows does it have?

2 rows

What is the operating temperature range?

-55°C to 85°C
