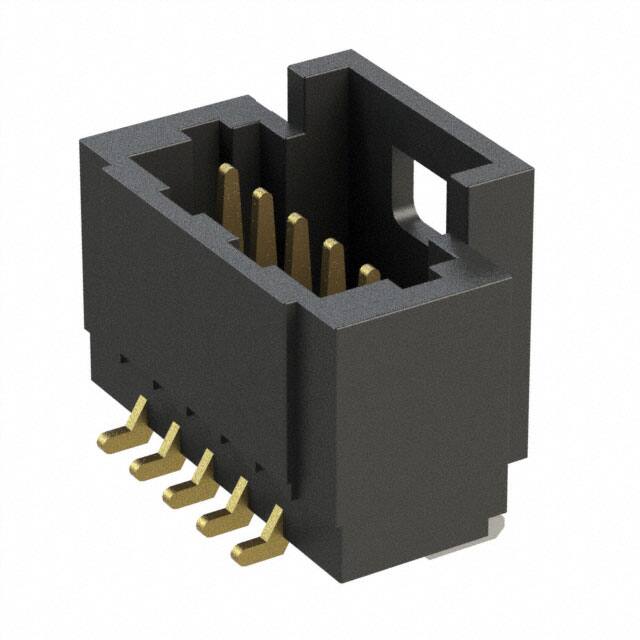

T1M-05-F-SV-L Samtec T1M-05-F-SV-L is a 5 position, single row, shrouded header with 1mm pitch. It features male pin contacts with tin finish, surface mount termination, and a locking ramp fastening type.
Mfr Part #:

T1M-05-F-SV-L

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec T1M-05-F-SV-L is a 5 position, single row, shrouded header with 1mm pitch. It features male pin contacts with tin finish, surface mount termination, and a locking ramp fastening type.
✓ Total Stock: 229 pcs
$ Price Range: $0.89 - $1.44

T1M-05-F-SV-L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
229 pcs
On Request
229 pcs On Request 1 On Request On Request 2115 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-05-F-SV-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T1M-05-F-SV-L Description

Short technical summary and product information.

The Samtec T1M-05-F-SV-L is a 5 position, single row, shrouded header from the T1M series. It is designed for board-to-cable/wire applications and features a 1.00mm pitch. The connector has a shrouded 4-wall design with a locking ramp for secure mating.



The header uses male pin contacts made of phosphor bronze with a tin finish (3.00µin). The insulator is made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating and natural color. It is designed for surface mount soldering and is packaged in tape and reel.



Electrical ratings include a current rating of 3.3A per contact and a voltage rating of 250VAC or 353VDC. The operating temperature range is -55°C to 85°C.

T1M-05-F-SV-L Quick Information

Product Type: Header
Series: T1M
Canonical Name: Samtec T1M-05-F-SV-L 5 Position 1mm Single Row Shrouded Header, Male Pins, Surface Mount
Subcategory: Shrouded Header

T1M-05-F-SV-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-05-F-SV-L Estimated Pricing

Qty Low High
1+ $1.44 $1.44
50+ $1.41 $1.41
100+ $1.25 $1.25
500+ $1.22 $1.22
825+ $1.14 $1.14
1,650+ $1.07 $1.07
9,900+ $0.89 $0.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-05-F-SV-L Features

  • 5 position single row shrouded header.
  • 1.00mm pitch for compact designs.
  • Rated for 3.3A per contact.
  • Surface mount termination with solder.
  • Locking ramp for secure mating.

T1M-05-F-SV-L Applications

  • Board-to-cable/wire interconnect applications.
  • Compact electronic device interconnections.
  • Applications requiring a secure locking header.

T1M-05-F-SV-L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the T1M-05-F-SV-L?

The pitch is 1.00mm (0.039").

How many positions does the T1M-05-F-SV-L have?

It has 5 positions in a single row.

What is the current rating of the T1M-05-F-SV-L?

The current rating is 3.3A per contact.

What is the voltage rating of the T1M-05-F-SV-L?

The voltage rating is 250VAC or 353VDC.

What is the mounting type for the T1M-05-F-SV-L?

The mounting type is Surface Mount.

What is the operating temperature range for the T1M-05-F-SV-L?

The operating temperature range is -55°C to 85°C.

What is the contact finish on the T1M-05-F-SV-L?

The contact finish is Tin with a thickness of 3.00µin (0.076µm).
