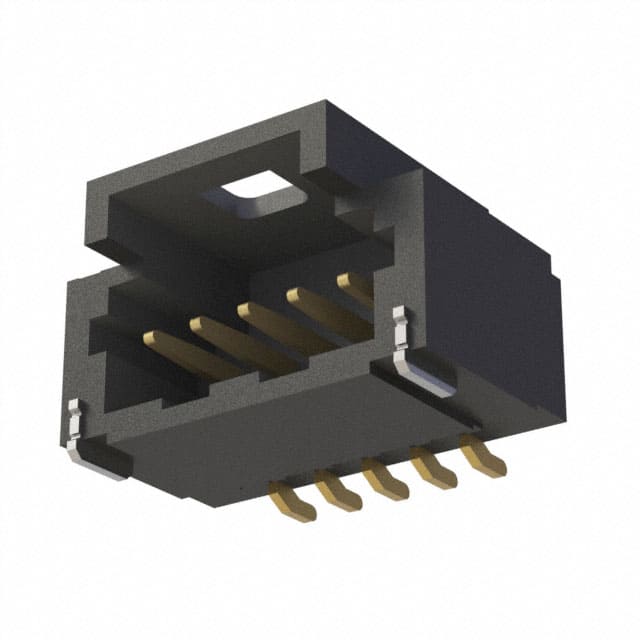

T1M-05-F-SH-L-K The Samtec Inc. T1M-05-F-SH-L-K is a 5-position, 1mm pitch shrouded box header with a right-angle surface mount configuration. It features a locking ramp for secure mating.
Mfr Part #:

T1M-05-F-SH-L-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. T1M-05-F-SH-L-K is a 5-position, 1mm pitch shrouded box header with a right-angle surface mount configuration. It features a locking ramp for secure mating.
✓ Total Stock: 14 pcs
$ Price Range: $0.77

T1M-05-F-SH-L-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-05-F-SH-L-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T1M-05-F-SH-L-K Description

Short technical summary and product information.

The Samtec Inc. T1M-05-F-SH-L-K is a 1mm pitch wire-to-board shrouded box header designed for reliable connections. This specific model features 5 positions arranged in a single row, with a right-angle surface mount orientation suitable for PCB integration.



The header is constructed with a Liquid Crystal Polymer (LCP) insulator, rated UL94 V-0 for flammability, and features phosphor bronze contacts with a tin finish. It operates within a temperature range of -55°C to 85°C and has a current rating of 3.3A per contact and a voltage rating of 250VAC/353VDC.



Key design features include a locking ramp for secure mating and a 'Pick and Place' compatible design for automated assembly. The natural colored insulator and shrouded design ensure proper alignment and protection.



This header is part of Samtec's Micro Mate™ series and is designed for applications requiring compact and robust interconnects. Its termination style is solder, and it is available in tape and reel packaging.

T1M-05-F-SH-L-K Quick Information

Product Type: Header
Series: Micro Mate™
Canonical Name: Samtec Inc. T1M Series 1mm Pitch Shrouded Box Header, Right Angle, 5 Positions
Subcategory: Male Pin Header

T1M-05-F-SH-L-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-05-F-SH-L-K Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-05-F-SH-L-K Features

  • 5 positions with 1mm pitch.
  • Right-angle surface mount configuration.
  • Locking ramp for secure connection.
  • UL94 V-0 rated LCP insulation material.
  • 3.3A current rating per contact.

T1M-05-F-SH-L-K Applications

  • Suitable for compact wire-to-board connections.
  • Used in automated assembly processes.
  • Ideal for applications requiring secure mating.
  • Designed for reliable signal transmission.

T1M-05-F-SH-L-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the T1M-05-F-SH-L-K have?

5 positions.

What is the pitch of the T1M-05-F-SH-L-K?

1.00mm (0.039 inches).

What is the current rating per contact?

3.3A per contact.

What is the voltage rating?

250VAC, 353VDC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to 85°C.

What is the material flammability rating?

UL94 V-0.
