T1M-05-F-SH-L Samtec T1M-05-F-SH-L is a 5-position single row shrouded header with 1mm pitch, surface mount right angle termination, and latch fastening.
Mfr Part #:

T1M-05-F-SH-L

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec T1M-05-F-SH-L is a 5-position single row shrouded header with 1mm pitch, surface mount right angle termination, and latch fastening.
✓ Total Stock: 45 pcs
$ Price Range: $1.10 - $1.58

T1M-05-F-SH-L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request 2106 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-05-F-SH-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T1M-05-F-SH-L Description

Short technical summary and product information.

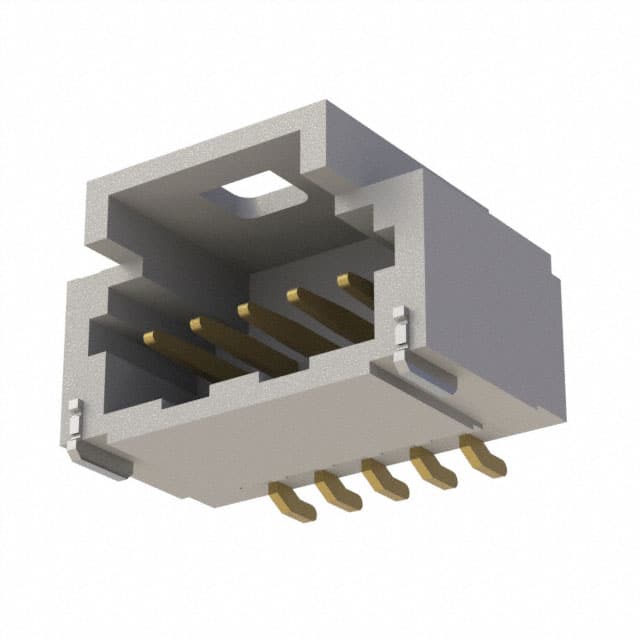

The Samtec T1M-05-F-SH-L is a 5-position single row shrouded header from the T1M series, designed for board-to-cable/wire applications. It features a 1.00mm pitch and a surface mount, right angle mounting style, making it suitable for compact, low-profile designs.



This connector uses male pin contacts made of phosphor bronze with a 3µ" gold plating on the contact area and matte tin on the tail, ensuring reliable electrical performance and solderability. The insulator is molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating and natural color.



The header includes a latch fastening mechanism for secure mating and is packaged in tape and reel for automated assembly. It is rated for 3.3A per contact and 250VAC/353VDC, with an operating temperature range of -55°C to 85°C.

T1M-05-F-SH-L Quick Information

Product Type: Header, Male Pins
Series: T1M
Canonical Name: Samtec T1M-05-F-SH-L 5-Position Single Row Shrouded Header, Surface Mount Right Angle, 1mm Pitch
Subcategory: Shrouded Header, Male Pins

T1M-05-F-SH-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-05-F-SH-L Estimated Pricing

Qty Low High
1+ $1.58 $1.58
50+ $1.52 $1.52
100+ $1.48 $1.48
500+ $1.44 $1.44
950+ $1.23 $1.23
1,900+ $1.13 $1.13
4,750+ $1.11 $1.11
9,500+ $1.10 $1.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-05-F-SH-L Features

  • 5-position single row shrouded header.
  • 1.00mm pitch for compact designs.
  • Surface mount right angle termination.
  • Gold-plated contacts for reliable connection.
  • Latch fastening for secure mating.

T1M-05-F-SH-L Applications

  • Board-to-cable/wire interconnect applications.
  • Compact electronic device assemblies.
  • Automated surface mount assembly lines.

T1M-05-F-SH-L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the T1M-05-F-SH-L?

The pitch is 1.00mm.

How many positions does this header have?

It has 5 positions.

What is the current rating?

3.3A per contact.

What is the voltage rating?

250VAC and 353VDC.

What is the mounting type?

Surface mount, right angle.
