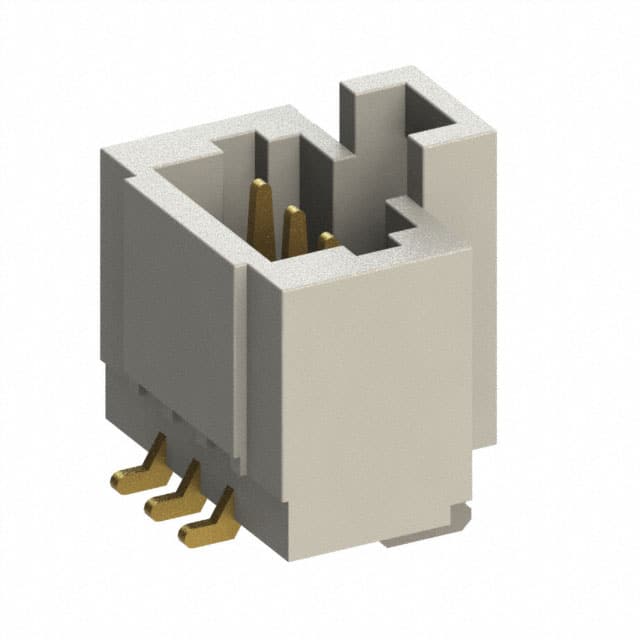

T1M-03-F-SV-L Samtec T1M-03-F-SV-L is a 3 position, 1mm pitch, single row, shrouded male pin header for board-to-cable/wire applications. It features surface mount termination, gold plated contacts, and a locking ramp fastening system.
Mfr Part #:

T1M-03-F-SV-L

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec T1M-03-F-SV-L is a 3 position, 1mm pitch, single row, shrouded male pin header for board-to-cable/wire applications. It features surface mount termination, gold plated contacts, and a locking ramp fastening system.
✓ Total Stock: 916 pcs
$ Price Range: $0.82 - $1.34

T1M-03-F-SV-L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
825 pcs
On Request
825 pcs On Request 1 On Request On Request On Request On Request 2026-04-21 02:15:44
Speed Components Ltd ✓
Non-Authorised Inventory information
91 pcs
On Request
91 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-03-F-SV-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

T1M-03-F-SV-L Description

Short technical summary and product information.

The Samtec T1M-03-F-SV-L is a 3-position, single row, shrouded male pin header from the T1M series, designed for board-to-cable/wire interconnect applications. It features a 1.00mm pitch and surface mount (SMD) solder termination, making it suitable for compact, high-density designs.



The connector is fully shrouded with a 4-wall design and includes a locking ramp for secure mating. The insulator is molded from Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating and natural color. Contacts are made of phosphor bronze with a 3 microinch gold finish on the contact area and matte tin on the tail, providing reliable signal integrity.



Rated for 3.3A per contact and 250VAC/353VDC, the T1M-03-F-SV-L operates over a temperature range of -55°C to 85°C. It is packaged in tape and reel for automated assembly. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

T1M-03-F-SV-L Quick Information

Product Type: Header
Series: T1M
Canonical Name: Samtec T1M-03-F-SV-L 3 Position 1mm Pitch Single Row Shrouded Male Pin Header
Subcategory: Shrouded Header

T1M-03-F-SV-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-03-F-SV-L Estimated Pricing

Qty Low High
1+ $1.34 $1.34
50+ $1.28 $1.28
100+ $1.14 $1.14
500+ $1.12 $1.12
825+ $1.07 $1.07
1,650+ $1.00 $1.00
4,950+ $0.90 $0.90
9,900+ $0.82 $0.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-03-F-SV-L Features

  • 3 position single row shrouded header.
  • 1.00mm pitch for compact designs.
  • Gold plated phosphor bronze contacts.
  • Rated 3.3A per contact at 250VAC.
  • Surface mount solder termination.

T1M-03-F-SV-L Applications

  • Board-to-cable/wire interconnect applications.
  • Compact electronic device internal wiring.
  • Industrial control and automation systems.
  • Consumer electronics requiring secure locking.

T1M-03-F-SV-L FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the T1M-03-F-SV-L have?

The T1M-03-F-SV-L has 3 positions in a single row.

What is the pitch of the T1M-03-F-SV-L?

The pitch is 1.00mm (0.039 inches).

What is the current rating per contact?

The current rating is 3.3A per contact.

What is the voltage rating of the T1M-03-F-SV-L?

The voltage rating is 250VAC and 353VDC.

What is the mounting type for this header?

The mounting type is surface mount (SMD) with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 85°C.

What contact finish does the T1M-03-F-SV-L have?

The contact finish is 3 microinch gold on the contact area with matte tin on the tail.
