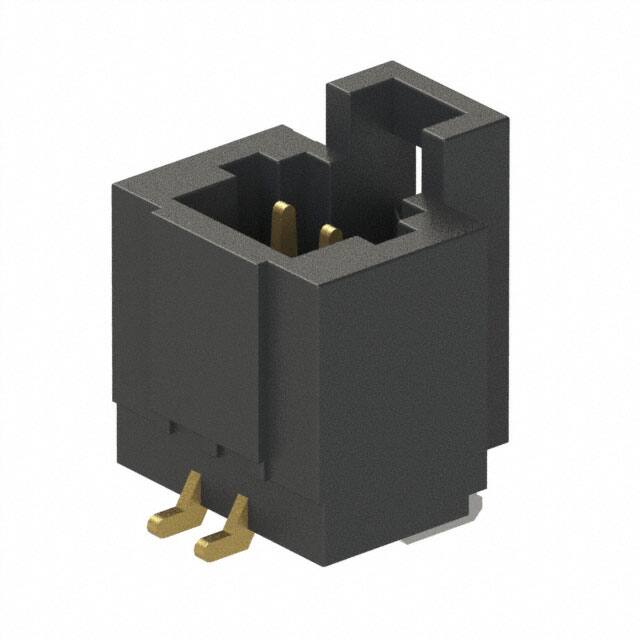

T1M-02-F-SV-L Samtec T1M-02-F-SV-L is a 2 position, 1mm pitch, single row shrouded male pin header for board-to-cable/wire applications. It features surface mount termination, tin plated phosphor bronze contacts, and a natural LCP insulator rated UL94 V-0.
Mfr Part #:

T1M-02-F-SV-L

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec T1M-02-F-SV-L is a 2 position, 1mm pitch, single row shrouded male pin header for board-to-cable/wire applications. It features surface mount termination, tin plated phosphor bronze contacts, and a natural LCP insulator rated UL94 V-0.
✓ Total Stock: 1,002 pcs
$ Price Range: $0.84 - $1.41

T1M-02-F-SV-L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
825 pcs
On Request
825 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
177 pcs
On Request
177 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-02-F-SV-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T1M-02-F-SV-L Description

Short technical summary and product information.

The Samtec T1M-02-F-SV-L is a 2 position, single row, shrouded male pin header from the T1M series. It features a 1.00mm pitch and is designed for board-to-cable/wire applications. The connector uses surface mount solder termination and includes a locking ramp fastening type for secure mating.



The header is fully shrouded with a 4-wall design, providing robust protection for the male pins. Contacts are made of phosphor bronze with a matte tin finish (3.00µin thickness). The insulator is molded from Liquid Crystal Polymer (LCP) in a natural color, with a flammability rating of UL94 V-0.



Electrical ratings include 3.3A per contact current and 250VAC/353VDC voltage. The operating temperature range is -55°C to 85°C. The component is packaged in Tape & Reel for automated assembly.

T1M-02-F-SV-L Quick Information

Product Type: Header, Male Pins
Series: T1M
Canonical Name: Samtec T1M Series 2 Position 1mm Pitch Single Row Shrouded Male Pin Header, Surface Mount
Subcategory: Shrouded Header

T1M-02-F-SV-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-02-F-SV-L Estimated Pricing

Qty Low High
1+ $1.41 $1.41
50+ $1.38 $1.38
100+ $1.23 $1.23
500+ $1.20 $1.20
825+ $1.08 $1.08
1,650+ $1.06 $1.06
4,950+ $0.92 $0.92
9,900+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-02-F-SV-L Features

  • 2 position single row shrouded header.
  • 1.00mm pitch for compact designs.
  • Surface mount solder termination.
  • Tin plated phosphor bronze contacts.
  • UL94 V-0 rated LCP insulator.

T1M-02-F-SV-L Applications

  • Board-to-cable/wire interconnect applications.
  • Compact electronic device internal wiring.
  • Space-constrained PCB connections.

T1M-02-F-SV-L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the T1M-02-F-SV-L?

The pitch is 1.00mm.

How many positions does the T1M-02-F-SV-L have?

It has 2 positions, all loaded.

What is the current rating of the T1M-02-F-SV-L?

The current rating is 3.3A per contact.

What is the voltage rating of the T1M-02-F-SV-L?

The voltage rating is 250VAC and 353VDC.

What is the mounting type for the T1M-02-F-SV-L?

It is surface mount.
