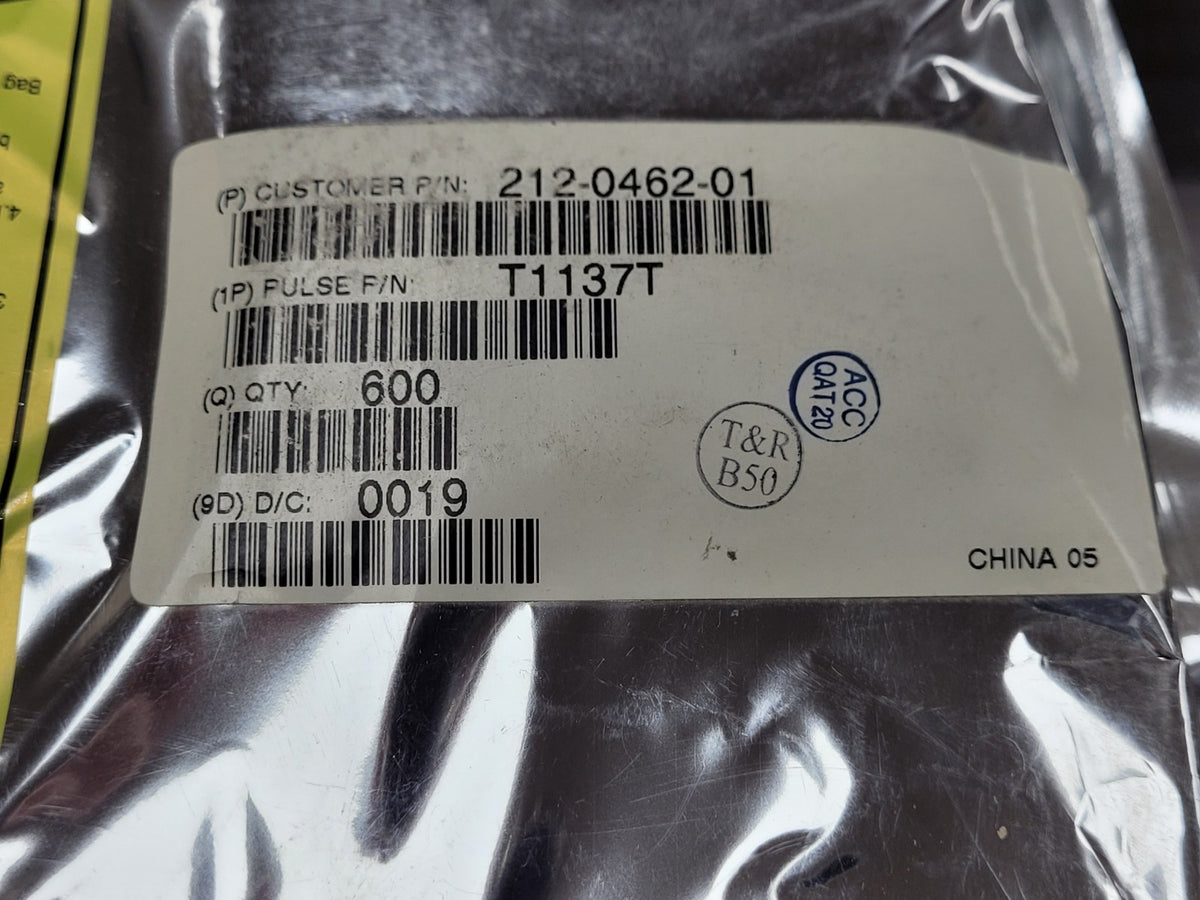

T1137 The Pulse Electronics T1137 is an audio and signal transformer designed for T1/CEPT/ISDN-Pri applications. It features a 10 MHz frequency range and SMD/SMT termination.
Mfr Part #:

T1137

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics T1137 is an audio and signal transformer designed for T1/CEPT/ISDN-Pri applications. It features a 10 MHz frequency range and SMD/SMT termination.
✓ Total Stock: 11 pcs
$ Price Range: $1.16

T1137 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1137 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Height
Length
Number of Channels
SVHC Present
Shielding
Termination Style
Type
Width
View Similar Products (0)

T1137 Description

Short technical summary and product information.

This Pulse Electronics T1137 is an audio and signal transformer suitable for T1/CEPT/ISDN-Pri applications. It operates within a frequency range of 10 MHz and offers an isolation voltage of 1.5 kV.



The transformer has a primary impedance of 0.7 Ohms and a primary resistance of 700 mOhms. It features dual channels and is unshielded. The operating temperature range is from 0 C to +70 C.



Designed for surface mounting, the T1137 has dimensions of 12.83 mm in length, 7.11 mm in width, and 6.22 mm in height. It is classified as a module type component.

T1137 Quick Information

Product Type: Audio & Signal Transformer
Canonical Name: T1137 Audio Transformer
Subcategory: Audio & Signal Transformer

T1137 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1137 Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1137 Features

  • Dual channel audio and signal transformer.
  • 10 MHz frequency range capability.
  • 1.5 kV isolation voltage rating.
  • SMD/SMT termination for surface mounting.
  • Operates from 0 C to 70 C.

T1137 Applications

  • Interfaces T1 digital carrier systems effectively.
  • Supports CEPT telecommunications network equipment.
  • Connects ISDN primary rate interface lines.
  • Used in enterprise voice gateway hardware.
  • Integrates into industrial communication controllers.

T1137 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the T1137 transformer?

The T1137 transformer operates from 0 C to +70 C.

What is the frequency range of the T1137 audio transformer?

The T1137 audio transformer has a frequency range of 10 MHz.

What is the isolation voltage of the T1137 signal transformer?

The T1137 signal transformer has an isolation voltage of 1.5 kV.

What type of termination does the T1137 transformer use?

The T1137 transformer uses SMD/SMT termination.

What are the dimensions of the T1137 transformer?

The T1137 transformer measures 12.83 mm in length, 7.11 mm in width, and 6.22 mm in height.
