| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

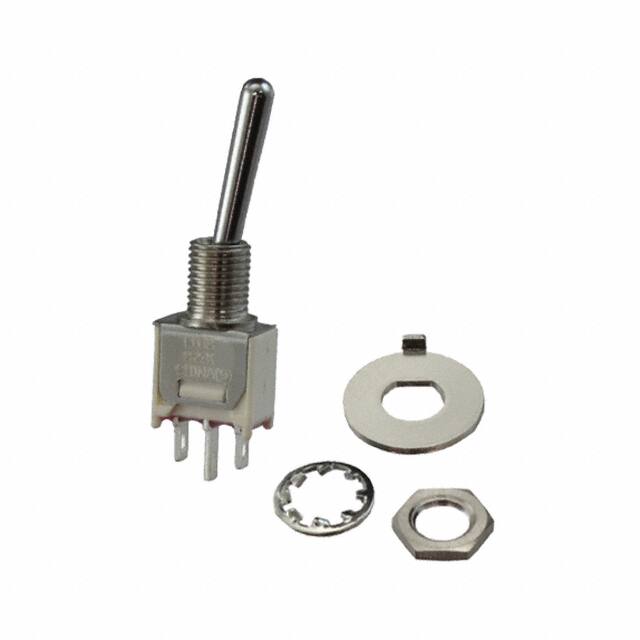

The C&K Components T108S1HZQE is a subminiature toggle switch from the T Series, featuring a compact size and a small footprint. This SPDT (Single Pole Double Throw) model is designed for panel mounting with solder lug termination style and a 10-48 bushing thread. It is non-illuminated and has a standard round actuator.
Key electrical specifications include a contact rating of 2A at 120V AC or 28V DC, with an electrical life of 30,000 cycles for most models. The contact resistance is typically below 20 mΩ, and insulation resistance is a minimum of 1 GΩ. Dielectric strength is rated at 1000 Vrms minimum.
Operating temperature ranges from -30°C to 85°C. The switch features epoxy sealed terminals for added protection. Materials include a glass-filled nylon case, brass actuator and bushing, and stainless steel housing. This model is RoHS3 compliant and has an MSL rating of 1.
Typical applications for this series include hand-held telecommunications, instrumentation, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 2A at 120V AC or 28V DC for models other than TX01.
-30°C to 85°C.
Stainless steel.
RoHS3 compliant, but the compliance status is unverified.
Solder lug.
