| Category | |
| Manufacturer Name | |
| Cooling Type | |
| Efficiency | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature |

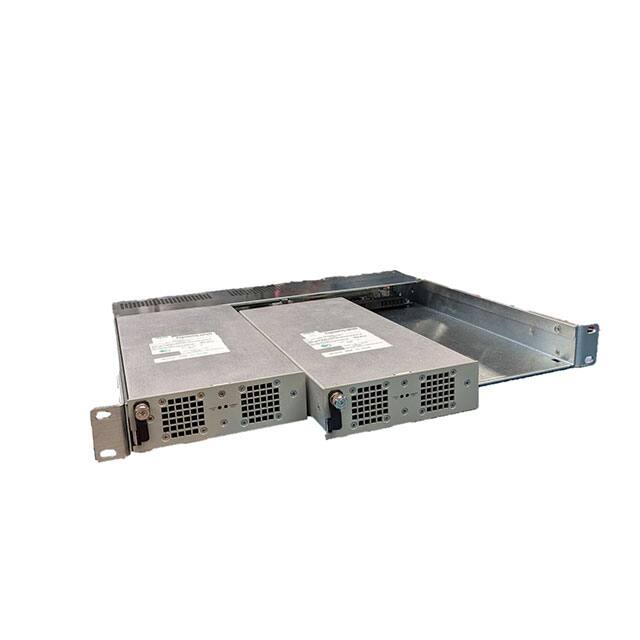

The Astrodyne TDI T100116243-LF is part of the HermesFlex series, designed as a shelf assembly for AC DC conversion. It accepts a universal 90-264VAC input and provides a 56V output, capable of delivering up to 6600W when configured in a multi-module setup.
Key electrical specifications include a wide input voltage range, high power factor (>0.97), and efficient operation with over 91% efficiency. The unit supports programmable outputs in constant voltage, constant current, or constant power modes, offering flexibility for various applications. It is designed for parallel and redundant operation with automatic current sharing and hot-swap compatibility.
This converter is certified to IEC60601 standards, featuring 2x MOPP output isolation and Type BF leakage current, making it suitable for medical applications. It also meets SEMI F47 compliance with 20ms holdup at full power. Control is managed via an onboard CAN bus and a shelf-level Ethernet controller.
The HermesFlex shelf assembly has a compact, enclosed form factor measuring 19 x 15.16 x 1.72 inches (482 x 385 x 44 mm). It utilizes forced air cooling and offers flexible mounting options, including front plug-in or chassis fixing points.
The input voltage range is 90-264 VAC or 120-380 VDC.
The operating temperature range is -30 to +55°C.
It is an enclosed shelf with front plug-in or hard-wired mounting options.
The shelf can deliver up to 6600 W continuous at 56 V output.
Yes, it is blind-mate and hot-swap compatible.
The shelf includes an on-board CAN bus and a shelf-level Ethernet controller.
Yes, it is SEMI F47 compliant with a 20ms holdup time at full power.
