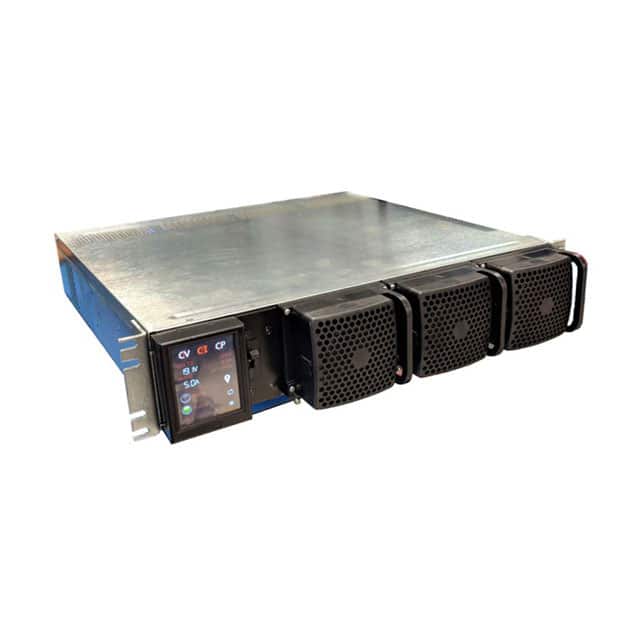

The Astrodyne TDI T100112517-LF is a high-power AC-DC converter designed for industrial applications. It accepts a three-phase AC input ranging from 180VAC to 253VAC and delivers up to 10,000W of output power.
This unit provides highly flexible DC outputs, with selectable voltage ranges including 10V-125V, 15V-450V, and 10V-250V. It supports constant voltage, constant current, and constant power operating modes with automatic crossover, ensuring stable power delivery for critical processes.
Key features include a front-panel touch LCD display, remote user interface capabilities, and a front-panel circuit breaker for safety. The power supply also incorporates N+1 redundancy and blind mate field-replaceable modules for low Mean Time To Repair (MTTR). Variable speed fan control is included to minimize noise and maximize fan life.
Applications for this power system include process power, semiconductor manufacturing, medical imaging, and test and burn-in equipment. Its high power density in a 2U high, 19-inch rack space makes it suitable for space-constrained environments.
-30 to +55°C
180-253 VAC three-phase delta
Three ranges: 10-125 VDC, 15-450 VDC, and 10-250 VDC, depending on configuration.
>93% at full load.
Analog, CAN-BUS, and Ethernet (ModBus TCP).
>0.98, compliant with IEC61000-2.
<4 Vpk-pk, 200 mV rms.
