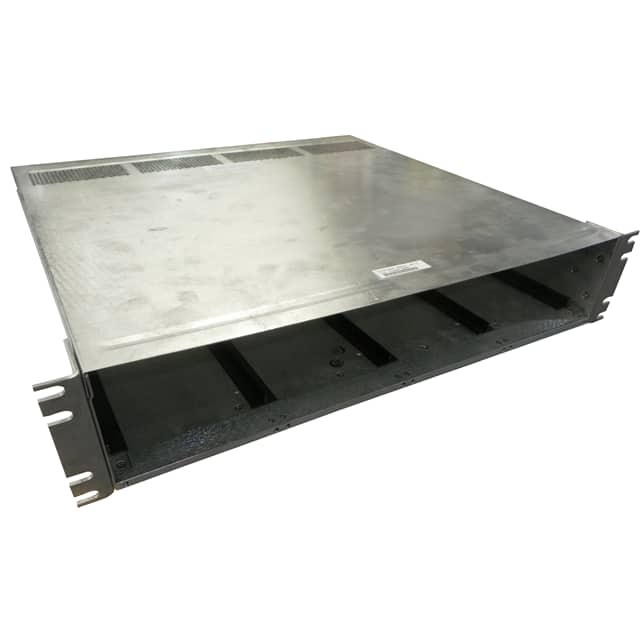

The Astrodyne TDI MercuryFlex T100106667-FMVD01BLF is a 2U programmable power supply module designed for high-value, mission-critical applications in semiconductor, industrial, and military markets. It provides a fully programmable, wide-range DC output operating from a universal AC input.
Key features include universal AC input (90-264VAC single-phase or 342-528VAC 3-phase), multiple DC output voltage and current options up to 3.8KW per module, and an isolated 12VDC auxiliary output. The module supports constant voltage, constant current, or constant power operating modes with full power factor correction.
Designed for integration into complex systems, it features a high-speed CAN Bus 2.0B interface for digital remote control and reporting, along with a Shelf Level Ethernet Controller. The MercuryFlex is modular, scalable, and hot-swap compatible, supporting automatic droop current sharing and output fault isolation. It also meets SEMI F47 standards with a 20ms holdup time.
This power supply module is ideal for applications requiring high reliability and power density within a 2U rack space. Its design considerations include variable speed fan control for minimized noise and extended fan life, contributing to high MTBF ratings.
The shelf supports single-phase 90-264 VAC and three-phase 342-528 VAC inputs.
It is a 2U rack-mount shelf.
Yes, it is blind-mate / hot-swap compatible.
It uses CAN Bus 2.0B for digital remote control.
It provides an isolated 12 VDC output at 0.15 A.
It meets SEMI 47 and EN61000-4-4/-5 severity level 4.
MTBF is >1M hours for single-phase input and >250k hours for three-phase input.
