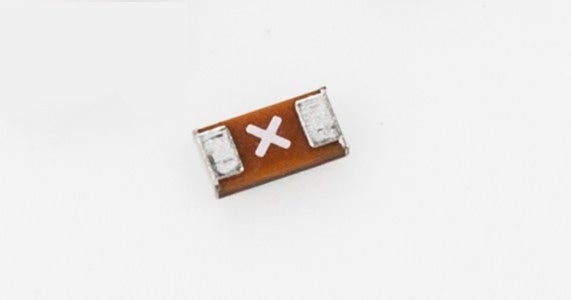

The AEM Inc T0603FF3000TM is a Thin Film Surface Mount Fuse from the T0603FF series, designed for very fast acting performance. It features a 3A current rating and a 35V DC voltage rating, with an interrupting rating of 35A at 35V DC/AC.
This fuse has a low DCR of 0.0176 Ω and a low profile, making it suitable for height-sensitive applications. The construction includes a fiberglass enforced epoxy fuse body and copper termination with nickel and tin plating. It is compatible with lead-free reflow soldering processes and is RoHS and Halogen Free compliant.
Key electrical characteristics include a clearing time of 5 seconds at 200% overload and 0.2 seconds at 300% overload. The dimensions are 1.60mm x 0.81mm x 0.30mm.
Applications for this fuse include notebook computers, tablets, digital cameras, memory cards, toys, Bluetooth earphones, and portable electronic devices.
The current rating is 3.00 A.
The voltage rating is 35 V DC.
The interrupting rating is 35A at 35V DC/AC.
The nominal cold DCR is 0.0176 Ω.
The nominal I2t value is 0.33 A²s.
The dimensions are 1.60mm in length, 0.81mm in width, and 0.30mm in thickness.
It clears in 5 seconds at 200% overload and 0.2 seconds at 300% overload.
