| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
315 pcs
|
315 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Contact Size | |
| Contact Type | |
| Current Rating | |
| Dielectric Material | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Rated Voltage | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Temperature Range | |
| Type |

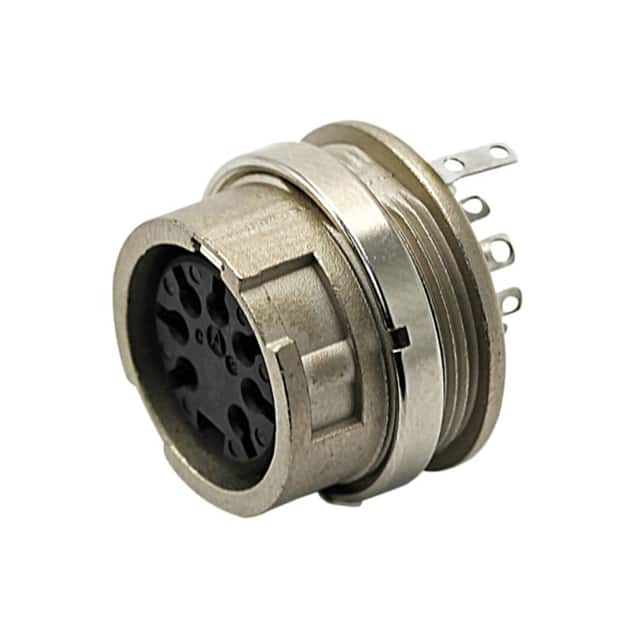

This Amphenol Tuchel Industrial T 3527 150 is a circular connector receptacle housing designed for use with female socket contacts. It features 8 positions with a 1.5mm contact size and crimp contact type. The housing is panel mounted with a bulkhead front side nut and secured with a bayonet lock. The shell is made of die cast material with a nickel finish, and the housing color is silver. It is rated IP40 for ingress protection and has a material flammability rating of UL94 V-0. The housing is unshielded. Electrical ratings include a rated voltage of 300 V (IEC 60664-1) and 250 V (UL 1977), a current rating of 10 A (IEC 60512-5-2) and 7 A (UL 1977), and an insulation resistance greater than 10^10 Ohm. The operating temperature range is -40°C to +100°C. The connector is designed for over 500 mating cycles with silver contacts and over 1000 with gold contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.34 | $11.34 |
| 10+ | $10.21 | $10.21 |
| 25+ | $9.62 | $9.62 |
| 50+ | $8.09 | $8.09 |
| 105+ | $7.52 | $7.52 |
| 210+ | $7.51 | $7.51 |
| 1,050+ | $7.16 | $7.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle Housing for Female Sockets.
8 positions.
Panel Mount with Bulkhead - Front Side Nut.
Bayonet Lock.
IP40.
Rated voltage 300 V (IEC 60664-1) and 250 V (UL 1977). Current rating 10 A (IEC 60512-5-2) and 7 A (UL 1977).
-40°C to +100°C.
