The Amphenol Tuchel Industrial T 3361 004 is a 5-position circular connector plug designed for free-hanging in-line applications. It features female sockets with solder cup termination, a threaded coupling mechanism, and keyed orientation for correct mating. The connector is shielded to protect against electromagnetic interference and has an IP40 ingress protection rating.

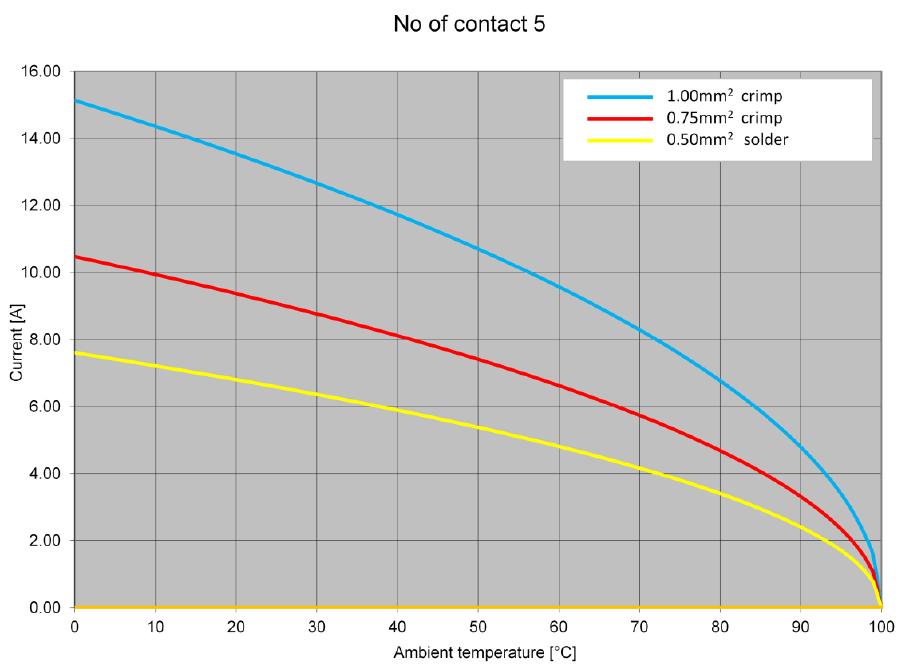

The shell is constructed from die-cast brass and/or zinc with a nickel finish, providing durability and corrosion resistance. The connector includes a cable clamp and strain relief, and accepts cables with a diameter of 4-6 mm via a PG7 cable gland. Contacts are silver-plated, rated for 7A continuous current at +40°C, with a voltage rating of 250V (UL 1977) or 300V (IEC 60664-1). Electrical performance includes contact resistance less than 5 mOhm and insulation resistance greater than 10^10 Ohm.
Mechanical endurance is specified at over 500 mating cycles for silver plating, with an insertion/withdrawal force of 35 N for 5 contacts. The connector is rated for operating temperatures from -40°C to +100°C and meets climatic category 40/100/56. It is suitable for industrial environments requiring reliable signal and power connections.
| Qty | Low | High |
|---|---|---|
| 100+ | $11.58 | $11.58 |
| 500+ | $11.44 | $11.44 |
| 1,000+ | $11.33 | $11.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
7A at +40°C.
250V (UL 1977) or 300V (IEC 60664-1).
Free hanging (in-line).
Die cast brass and/or zinc with nickel plating.
Yes, it is shielded.
4-6 mm via a PG7 cable gland.
