Mfr Part #:

SZP-C-2L14

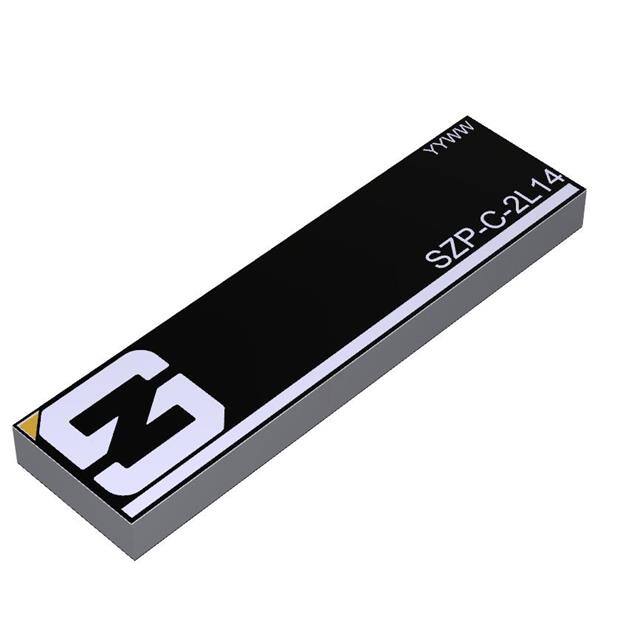

Name: SZP-C-2L14
Brand: Synzen
SKU: SZP-C-2L14

Mfr Name: Synzen

Description:

5G ANT 617-5000MHZ SMD CHIP

Stock on Request

SZP-C-2L14 Description

Short technical summary and product information.

5G ANT 617-5000MHZ SMD CHIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Synzen
Antenna Type	Chip
Applications	2G, 3G, 4G, 5G, LTE
Frequency (Center	788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
Gain	1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi
Height (Max)	0.130" (3.30mm)
Mounting Type	Surface Mount
Number of Bands	6
RF Family	Cellular
Termination	Solder
