Mfr Part #:

SZP-C-1W11

Name: SZP-C-1W11
Brand: Synzen Precision Technology
SKU: SZP-C-1W11

Description:

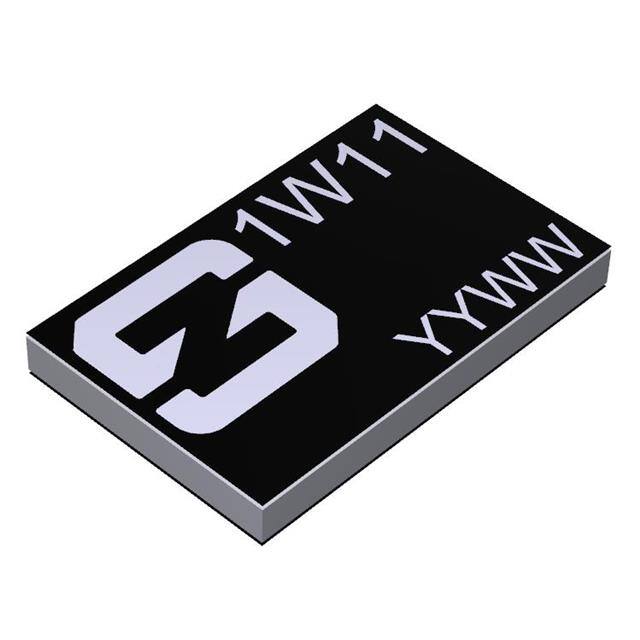

Tri-Band WLAN/BLE SMD Antenna

Stock on Request

SZP-C-1W11 Description

Short technical summary and product information.

Tri-Band WLAN/BLE SMD Antenna

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Synzen Precision Technology
Antenna Type	Chip
Applications	Wi-Fi
Frequency (Center	2.45GHz, 5.5GHz, 6.525GHz
Frequency Group	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Gain	0.8dBi, 2.48dBi, 2.82dBi
Height (Max)	0.043" (1.10mm)
Mounting Type	Surface Mount
Number of Bands	3
RF Family	WiFi
Termination	Solder
