Mfr Part #:

SZP-C-0L02

Name: SZP-C-0L02
Brand: Synzen
SKU: SZP-C-0L02

Mfr Name: Synzen

Description:

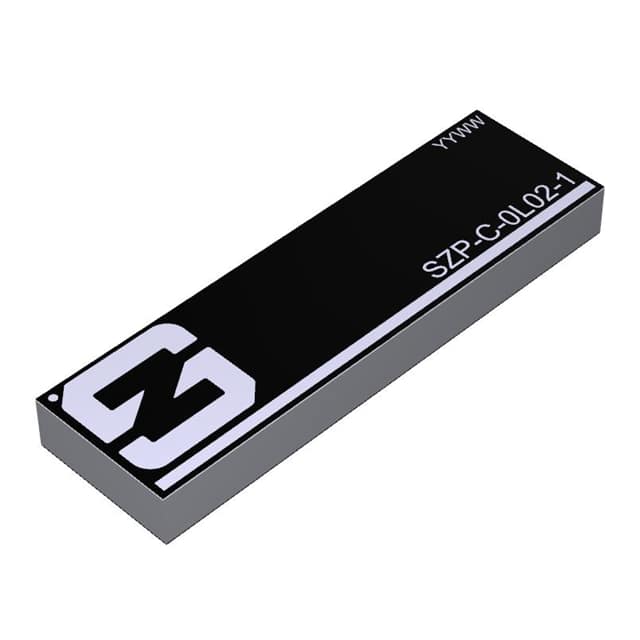

4GLTE ANT 698-2690MHZ SMD CHIP

Stock on Request

SZP-C-0L02 Description

Short technical summary and product information.

4GLTE ANT 698-2690MHZ SMD CHIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Synzen
Antenna Type	Chip
Applications	3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Frequency (Center	829MHz, 1.94GHz, 2.35GHz, 2.595GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Gain	1.5dBi, 3.4dBi, 2.7dBi, 1.5dBi
Height (Max)	0.130" (3.30mm)
Mounting Type	Surface Mount
Number of Bands	5
RF Family	Cellular
Return Loss	-6dB, -7.5dB, -6dB, -5dB
Termination	Solder
VSWR	3.1, 2.9, 3.25, 3.5
