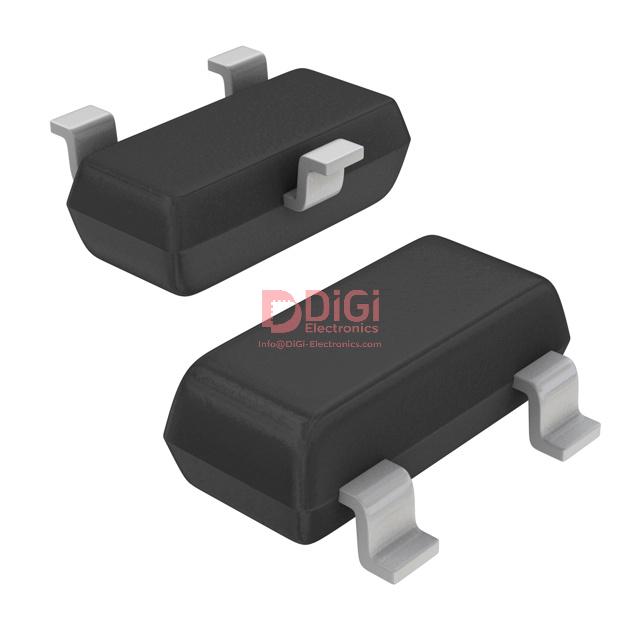

SZMMBZ5234BLT1G The onsemi SZMMBZ5234BLT1G is a Zener diode with a 6.2V nominal voltage and a 225mW power rating. It features a ±5% tolerance and is housed in a surface-mount SOT-23-3 package.
Mfr Part #:

SZMMBZ5234BLT1G

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The onsemi SZMMBZ5234BLT1G is a Zener diode with a 6.2V nominal voltage and a 225mW power rating. It features a ±5% tolerance and is housed in a surface-mount SOT-23-3 package.
✓ Total Stock: 223 pcs
$ Price Range: $0.02

SZMMBZ5234BLT1G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
223 pcs
On Request
223 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SZMMBZ5234BLT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Forward Voltage
Impedance
Mounting Type
Operating Temperature
Power Dissipation
SVHC Present
Tolerance
View Similar Products (0)

SZMMBZ5234BLT1G Description

Short technical summary and product information.

The onsemi SZMMBZ5234BLT1G is a Zener diode designed for voltage regulation applications. It offers a precise 6.2V nominal Zener voltage with a tight tolerance of ±5%, ensuring stable output.



With a maximum power dissipation of 225mW, this diode is suitable for low-power circuits. Its low impedance of 7 Ohms at the specified test condition and a reverse leakage current of 5 µA at 4V contribute to its efficient operation.



The SZMMBZ5234BLT1G is packaged in a compact SOT-23-3 (TO-236) surface-mount case, making it ideal for space-constrained PCB designs. The operating temperature range is -65°C to 150°C, and it meets AEC-Q101 automotive qualification standards.

SZMMBZ5234BLT1G Quick Information

Product Type: Zener Diode
Series: SZMMBZ
Canonical Name: onsemi SZMMBZ5234BLT1G Zener Diode
Subcategory: Single Zener Diodes

SZMMBZ5234BLT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SZMMBZ5234BLT1G Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SZMMBZ5234BLT1G Features

  • 6.2V nominal Zener voltage.
  • 225mW maximum power dissipation.
  • ±5% voltage tolerance.
  • SOT-23-3 surface-mount package.
  • AEC-Q101 automotive qualification.

SZMMBZ5234BLT1G Applications

  • Voltage regulation in automotive electronics.
  • Overvoltage protection circuits.
  • Voltage reference in power supplies.
  • Clamping in signal conditioning circuits.

SZMMBZ5234BLT1G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the SZMMBZ5234BLT1G?

The nominal Zener voltage is 6.2V.

What is the power dissipation rating?

The maximum power dissipation is 225mW.

What is the package type?

The package is SOT-23-3, surface mount.

What is the operating temperature range?

The operating temperature range is -65°C to 150°C.

Is this part qualified for automotive use?

Yes, it is AEC-Q101 qualified.

What is the forward voltage at 10mA?

The maximum forward voltage is 900mV at 10mA.
