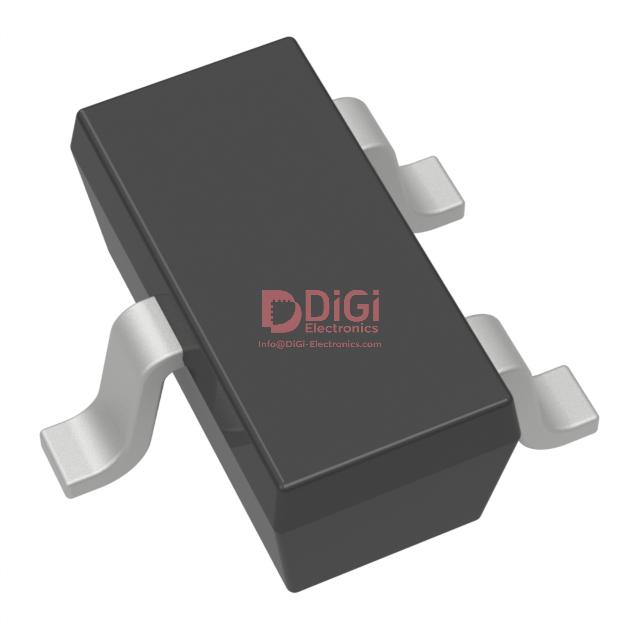

SZMMBZ5227BLT1G The ON Semiconductor SZMMBZ5227BLT1G is a Zener diode with a nominal voltage of 3.6V and a power dissipation of 225mW. It is housed in a surface-mount SOT-23-3 package.
Mfr Part #:

SZMMBZ5227BLT1G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor SZMMBZ5227BLT1G is a Zener diode with a nominal voltage of 3.6V and a power dissipation of 225mW. It is housed in a surface-mount SOT-23-3 package.
✓ Total Stock: 2,610 pcs
$ Price Range: $0.02

SZMMBZ5227BLT1G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,440 pcs
On Request
2440 pcs On Request 1 On Request On Request 17+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
170 pcs
On Request
170 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SZMMBZ5227BLT1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Forward Voltage
Impedance (Max) (Zzt)
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tolerance
Voltage
View Similar Products (0)

SZMMBZ5227BLT1G Description

Short technical summary and product information.

The SZMMBZ5227BLT1G from ON Semiconductor is a Zener voltage regulator designed for surface-mount applications. It offers a nominal Zener voltage of 3.6V with a tolerance of ±5%, making it suitable for precise voltage regulation tasks.



With a power dissipation rating of 225 mW on an FR-4 or FR-5 board, this diode is well-suited for high-density printed circuit boards and portable electronic devices. The device features a maximum forward voltage of 900 mV at 10 mA and a reverse leakage current of 15 µA at 1 V. Its operating temperature range is from -65°C to 150°C.



The component is packaged in a compact SOT-23-3 (TO-236) surface-mount case, designed for optimal automated board assembly. This small package size is beneficial for applications requiring minimal space, such as cellular phones and handheld portables. The polarity band indicates the cathode.

SZMMBZ5227BLT1G Quick Information

Product Type: Zener Diode
Canonical Name: SZMMBZ5227BLT1G Zener Diode
Subcategory: Zener

SZMMBZ5227BLT1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SZMMBZ5227BLT1G Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SZMMBZ5227BLT1G Features

  • 3.6V nominal Zener voltage rating.
  • 225mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Surface mount SOT-23-3 package.
  • -65°C to 150°C operating temperature range.

SZMMBZ5227BLT1G Applications

  • Voltage regulation in portable devices.
  • High-density circuit board applications.
  • Handheld electronic device designs.
  • Cellular phone circuitry integration.

SZMMBZ5227BLT1G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the SZMMBZ5227BLT1G?

3.6V.

What is the power dissipation rating?

225mW.

What is the voltage tolerance?

±5%.

What is the package type?

SOT-23-3 (TO-236-3, SC-59).

What is the operating temperature range?

-65°C to 150°C.

What is the forward voltage at 10mA?

900mV.

Is this component surface mount?

Yes, surface mount.
