Mfr Part #:

SZK-C-1L08

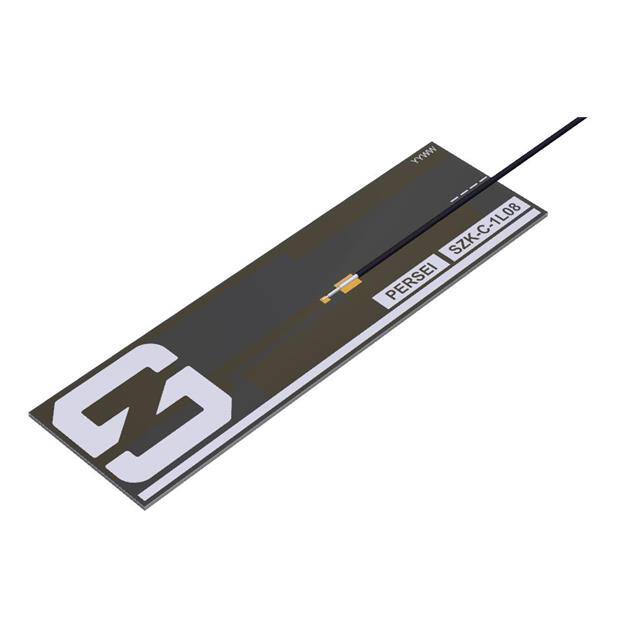

Name: SZK-C-1L08
Brand: Synzen Precision Technology
SKU: SZK-C-1L08

Description:

4G LTE FLAT PATCH IPEX (FR4)

Stock on Request

SZK-C-1L08 Description

Short technical summary and product information.

4G LTE FLAT PATCH IPEX (FR4)

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Synzen Precision Technology
Antenna Type	PCB Trace
Applications	2G, 3G, 4G, LTE
Features	Cable - 150mm
Frequency (Center	829MHz, 1.955GHz, 2.35GHz, 2.595GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Gain	2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi
Height (Max)	0.024" (0.60mm)
Mounting Type	Surface Mount
Number of Bands	4
Power	5 W
RF Family	Cellular
Return Loss	-6dB, -11.3dB, -11.4dB, -13.8dB
Termination	U.FL (UMCC), IPEX MHF1
VSWR	1.5, 1.7, 1.75, 2.9
