| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57,000 pcs
|
57000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Breakdown Voltage | |
| Capacitance @ Frequency | |
| Clamping Voltage (Typical @ IPP = -8 A) | |
| Clamping Voltage (Typical @ IPP = 1 A, I/O Pin to GND (8 x 20 µs pulse) | |
| Clamping Voltage (Typical @ IPP = 16 A) | |
| Current | |
| ESD Rating (Air) | |
| ESD Rating (Contact) | |
| Halogen Free | |
| Junction Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Leakage Current | |
| Reverse Working Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |

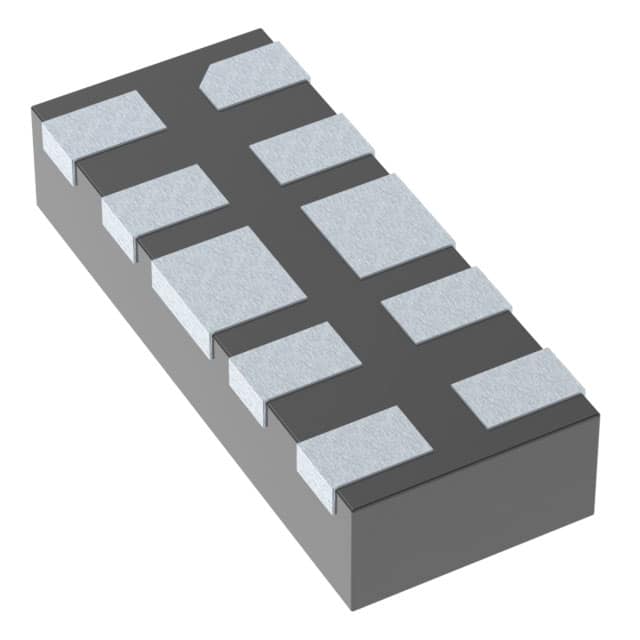

The SZESD7104MUTAG is a low capacitance ESD protection diode from On Semiconductor, designed to protect high-speed data lines from electrostatic discharge. It offers ultra-low capacitance of 0.3pF typical between I/O pins, making it suitable for voltage-sensitive high-speed interfaces.
This device provides ESD protection per IEC 61000-4-2 at Level 4, with ±15kV contact and air discharge ratings. It features a typical clamping voltage of 10V at 1A and 14.1V at ±8A. The diode array integrates four unidirectional channels in a compact 10-UDFN package (2.5x1mm) for surface mount assembly.
Typical applications include USB 3.0, HDMI 1.3/1.4, DisplayPort, eSATA, and Thunderbolt interfaces. The flow-through package design simplifies PCB layout and maintains consistent impedance for high-speed differential pairs. The SZ prefix indicates automotive qualification (AEC-Q101) and PPAP capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 10+ | $0.75 | $0.75 |
| 100+ | $0.49 | $0.49 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.34 | $0.34 |
| 3,000+ | $0.28 | $0.28 |
| 6,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse working voltage is 5.0V (I/O Pin to GND).
The minimum breakdown voltage is 5.5V at IT = 1 mA (I/O Pin to GND).
Typical clamping voltage is 10V at IPP = 1 A (8 x 20 µs pulse), 14.1V at ±8 A, and 19.5V at ±16 A.
Typical junction capacitance is 0.3 pF between I/O pins at VR = 0 V, f = 1 MHz.
It meets IEC 61000-4-2 Level 4 with ±15kV contact and ±15kV air discharge.
It is supplied in a 10-UFDFN surface mount package (10-UDFN 2.5x1).
The operating junction temperature range is -55°C to 125°C.
