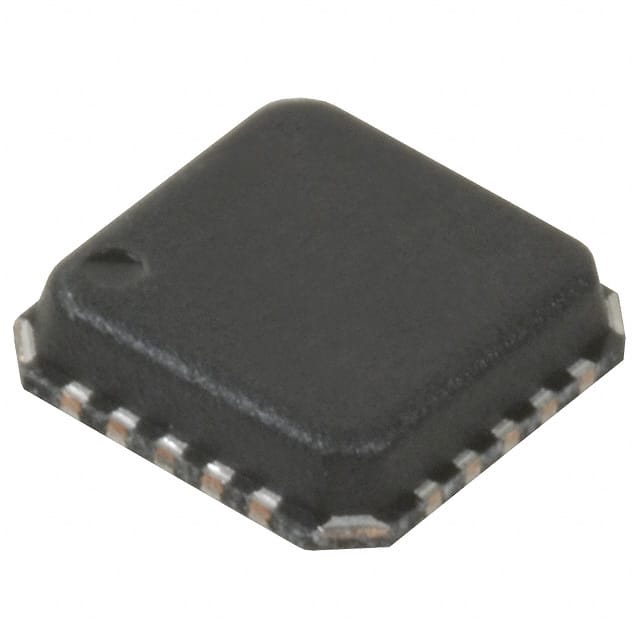

SZA-3044Z The RFMD SZA-3044Z is a high-linearity Class AB HBT amplifier designed for 802.16 equipment. It operates across the 2.7GHz to 3.8GHz frequency range.
Mfr Part #:

SZA-3044Z

Available from 2 distributors
Mfr Name: RFMD
RFMD
The RFMD SZA-3044Z is a high-linearity Class AB HBT amplifier designed for 802.16 equipment. It operates across the 2.7GHz to 3.8GHz frequency range.
✓ Total Stock: 40,742 pcs
$ Price Range: $0.98

SZA-3044Z Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
40,742 pcs
On Request
40742 pcs On Request 1 On Request On Request 0917+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SZA-3044Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Gain
Lead Spacing
Mounting Type
Noise Figure
Output Power
P1dB
Quiescent Current
RF Type
Supplier Device Package
Test Frequency
Thermal Resistance
Voltage
View Similar Products (0)

SZA-3044Z Description

Short technical summary and product information.

The RFMD SZA-3044Z is a high linearity Class AB Heterojunction Bipolar Transistor (HBT) amplifier. Fabricated with InGaP on GaAs device technology, it is suitable for 802.16 equipment in the 3.3GHz to 3.8GHz bands.



This amplifier operates from a 3V to 6V supply and features optimized on-chip impedance matching for a 50 Ohm RF input. Key electrical specifications include a frequency range of 2.7GHz to 3.8GHz, a P1dB of 28.5dBm to 30dBm, and a small signal gain of 22dB to 26dB. It also offers a noise figure of 5.0dB and a third-order suppression of -35.5dBc.



The SZA-3044Z is housed in a low-cost, surface-mountable plastic package, specifically a 20-VFQFN exposed pad. It includes features such as an on-chip output power detector, on/off power control, and robust RF overdrive protection. The device is pin-compatible with SZA-2044 and SZA-5044.



Applications for this amplifier include 802.16 WiMAX driver or output stages, and Fixed Wireless or WLL systems. It is designed for ease of integration into various wireless communication systems.

SZA-3044Z Quick Information

Product Type: RF Amplifier
Canonical Name: RFMD SZA-3044Z High Linearity Class AB Heterojunction Bipolar Transistor Amplifier

SZA-3044Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SZA-3044Z Estimated Pricing

Qty Low High
1+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

SZA-3044Z Features

  • High linearity Class AB HBT amplifier.
  • Operates from 2.7GHz to 3.8GHz.
  • Features 22dB to 26dB small signal gain.
  • Offers 28.5dBm to 30dBm P1dB.
  • Surface mountable 20-VFQFN package.

SZA-3044Z Applications

  • Designed for 802.16 WiMAX systems.
  • Suitable for Fixed Wireless applications.
  • Used in WLL infrastructure.
  • Ideal for driver or output stages.

SZA-3044Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the SZA-3044Z?

The SZA-3044Z operates from 2.7GHz to 3.8GHz.

What is the typical output power at 1dB compression (P1dB) for the SZA-3044Z?

The P1dB is between 28.5dBm and 30.0dBm at 3.6GHz.

What is the small signal gain of the SZA-3044Z?

The small signal gain is between 22.0dB and 26.0dB.

What is the noise figure for the SZA-3044Z?

The noise figure is 5.0dB at 3.6GHz.

What is the operating voltage range for the SZA-3044Z?

The SZA-3044Z operates from 3V to 6V.

What package type is the SZA-3044Z supplied in?

The SZA-3044Z is supplied in a 20-VFQFN Exposed Pad package.

How is the SZA-3044Z mounted?

The SZA-3044Z is a surface mount device.
