| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,081 pcs
|
1081 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Quiescent Current | |
| Synchronous Rectifier | |
| Topology | |
| Voltage Supply |

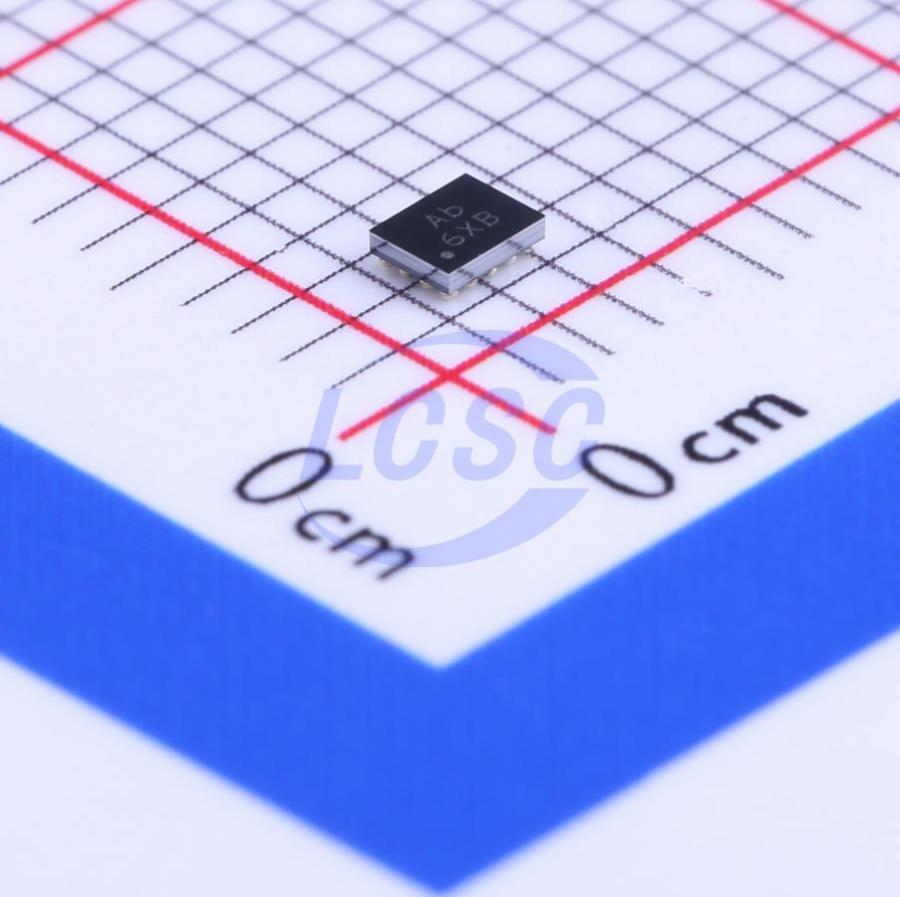

The Silergy Corp SYR827PKC is a highly efficient DC-DC switching regulator designed for step-down applications. It features a wide input voltage range from 2.6V to 5.5V and can provide a substantial output current of up to 6A. The device operates at a switching frequency of 2.4MHz, enabling the use of smaller external components and contributing to its compact WLCSP-20 package.
Key electrical characteristics include an adjustable output voltage ranging from 712.5mV to 1.5V and a low quiescent current of 65uA. The SYR827PKC incorporates several advanced features such as a light load efficient mode, output discharge capability, operating status indication, hiccup current limiting, and dynamic voltage scaling. These features enhance its performance and suitability for various power management applications.
This component is housed in a WLCSP-20 package, designed for surface mount assembly. Its operating temperature range is -40°C to +85°C, making it suitable for demanding environments. The built-in synchronous rectifier contributes to its efficiency and simplifies the overall circuit design.
This adjustable buck converter is ideal for applications requiring efficient power conversion and high current delivery within a compact form factor. Its features make it a versatile choice for power management solutions in electronic devices.
The input voltage range is 2.6V to 5.5V.
The output voltage is adjustable from 712.5mV to 1.5V.
The maximum output current is 6A.
The operating temperature range is -40°C to +85°C.
The SYR827PKC is available in a WLCSP-20 package.
Yes, the switch tube is built-in.
The switching frequency is 2.4MHz.
