SYR-02TV JST RCY series 2 position receptacle housing for 2.50mm pitch wire-to-wire connectors. Crimp termination, white PA66 UL94V-0, rated 3A/250V AC/DC.
Mfr Part #:

SYR-02TV

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST RCY series 2 position receptacle housing for 2.50mm pitch wire-to-wire connectors. Crimp termination, white PA66 UL94V-0, rated 3A/250V AC/DC.
✓ Total Stock: 226 pcs
$ Price Range: $0.10 - $0.19

SYR-02TV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
226 pcs
On Request
226 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SYR-02TV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Housing Material
Insulation Resistance
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Voltage Rating
Withstanding Voltage
View Similar Products (0)

SYR-02TV Description

Short technical summary and product information.

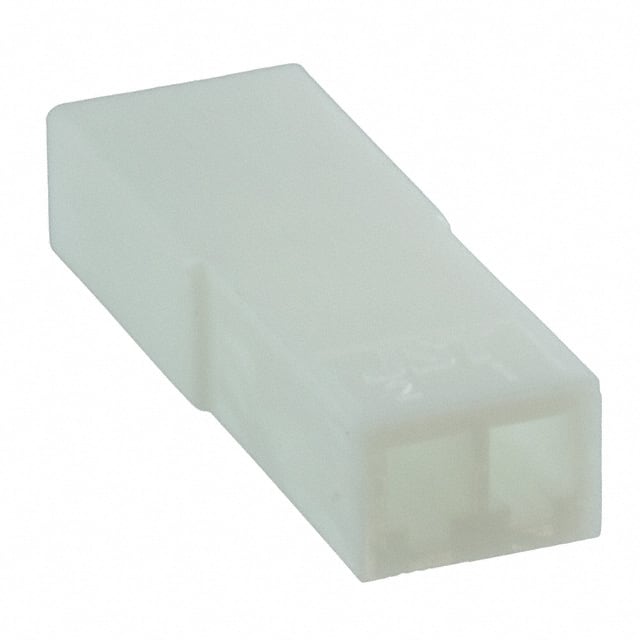

The JST RCY series SYR-02TV is a 2 position receptacle connector housing designed for 2.50mm pitch wire-to-wire applications. Its compact design measures 23.3mm total length and 4.0mm height when mated, making it suitable for space-constrained environments.



This housing accepts male pin contacts via crimp termination and supports wire sizes AWG #28 to #22. Electrical ratings include 3A maximum current per circuit (with AWG #22) and 250V AC/DC voltage rating. Operating temperature range is -25°C to +85°C.



The housing is molded from PA66 thermoplastic with UL94V-0 flammability rating and is white in color. It is RoHS2 compliant. The free spring socket contact design ensures stable contact performance and reduced insertion force.

SYR-02TV Quick Information

Product Type: Rectangular Connector Housing
Series: RCY
Canonical Name: JST RCY Series Receptacle Housing, 2 Position, 2.50mm Pitch, Crimp
Subcategory: Rectangular Connector Housings

SYR-02TV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SYR-02TV Estimated Pricing

Qty Low High
1+ $0.19 $0.19
10+ $0.16 $0.16
25+ $0.14 $0.14
100+ $0.14 $0.14
250+ $0.12 $0.12
1,000+ $0.12 $0.12
3,000+ $0.11 $0.11
5,000+ $0.11 $0.11
10,000+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

SYR-02TV Features

  • 2 position 2.50mm pitch housing.
  • Rated 3A max with AWG #22 wire.
  • Accepts AWG #28 to #22 wire.
  • PA66 housing with UL94V-0 rating.
  • RoHS2 compliant and white in color.

SYR-02TV Applications

  • Wire-to-wire connector for sensors.
  • Used in actuator interconnects.
  • Ideal for compact electronic devices.

SYR-02TV FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the SYR-02TV have?

It has 2 positions in a single row.

What is the pitch of this connector housing?

The pitch is 2.50mm (0.098 inches).

What is the current rating of the SYR-02TV?

The maximum current rating is 3A per circuit when using AWG #22 wire.

What is the voltage rating?

250V AC/DC.

What type of mounting does this housing use?

Free hanging (in-line) mounting.
