| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Voltage |
The Micrel/Microchip SY89825UHI is a high-performance clock fanout buffer, multiplexer, and translator IC. It is designed to distribute clock signals efficiently in demanding applications, supporting a maximum frequency of 2GHz. The device operates from a supply voltage range of 2.37V to 3.6V and features both LVDS and LVPECL inputs, with LVPECL outputs.
This clock buffer is housed in a 64-TQFP Exposed Pad package, suitable for surface mounting. It offers a 2:22 input to output ratio, allowing for flexible signal distribution. The operating temperature range is from -40°C to 85°C, making it suitable for a variety of environmental conditions. The SY89825UHI is part of the Precision Edge® series, known for its timing solutions.
Key electrical characteristics include its ability to handle differential inputs and outputs (Yes/Yes). The component type is specified as a Fanout Buffer (Distribution), Multiplexer, Translator. The MSL rating is 3 (168 Hours). The RoHS status indicates it contains lead and is non-compliant with RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 2GHz.
The supply voltage range is 2.37V to 3.6V.
It accepts LVDS and LVPECL inputs and provides LVPECL outputs.
The operating temperature range is -40°C to 85°C.

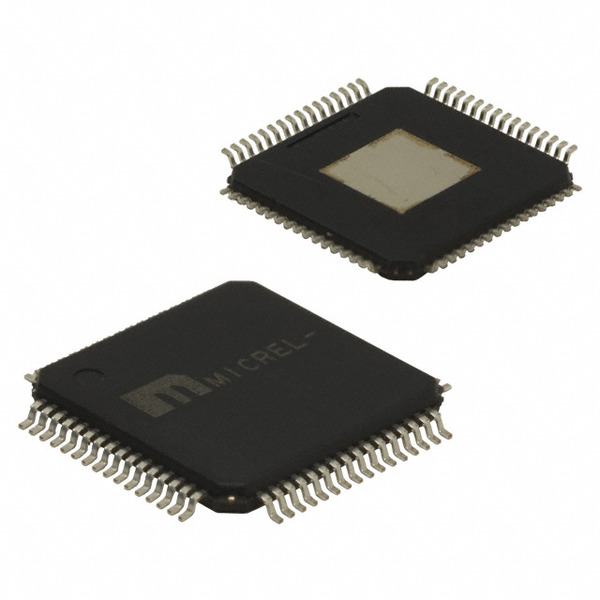

The SY89825UHI is supplied in a 64-TQFP Exposed Pad package.
The RoHS status indicates it contains lead and is RoHS non-compliant.
The MSL is 3 (168 Hours).
