SY8089A1AAC The Silergy SY8089A1AAC is a high-efficiency, 1.5MHz synchronous step-down DC/DC regulator. It delivers up to 2A output current and operates from a 2.5V to 5.5V input range.
Mfr Part #:

SY8089A1AAC

Available from 3 distributors
Mfr Name: Silergy
Silergy
The Silergy SY8089A1AAC is a high-efficiency, 1.5MHz synchronous step-down DC/DC regulator. It delivers up to 2A output current and operates from a 2.5V to 5.5V input range.
✓ Total Stock: 52,964 pcs
$ Price Range: $1.92

SY8089A1AAC Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
46,028 pcs
On Request
46028 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,126 pcs
On Request
4126 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,810 pcs
On Request
2810 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SY8089A1AAC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Halogen Free
Industrial Grade
Input Voltage
Medical Grade
Military Grade
Mounting Type
Output Current
Quiescent Current
Storage Temperature
Tape & Reel
View Similar Products (0)

SY8089A1AAC Description

Short technical summary and product information.

The Silergy SY8089A1AAC is a synchronous step-down DC/DC regulator designed for high efficiency and compact applications. It can deliver up to 2A of output current and operates over a wide input voltage range of 2.5V to 5.5V.



Key features include a high switching frequency of 1.5MHz, which minimizes the size of external components like inductors and capacitors. It also boasts a low quiescent current of 50μA and integrates internal switches with low RDS(ON) (130mΩ top, 85mΩ bottom) to reduce conduction losses. The device includes internal soft-start to limit inrush current and hic-cup protection for short-circuit events.

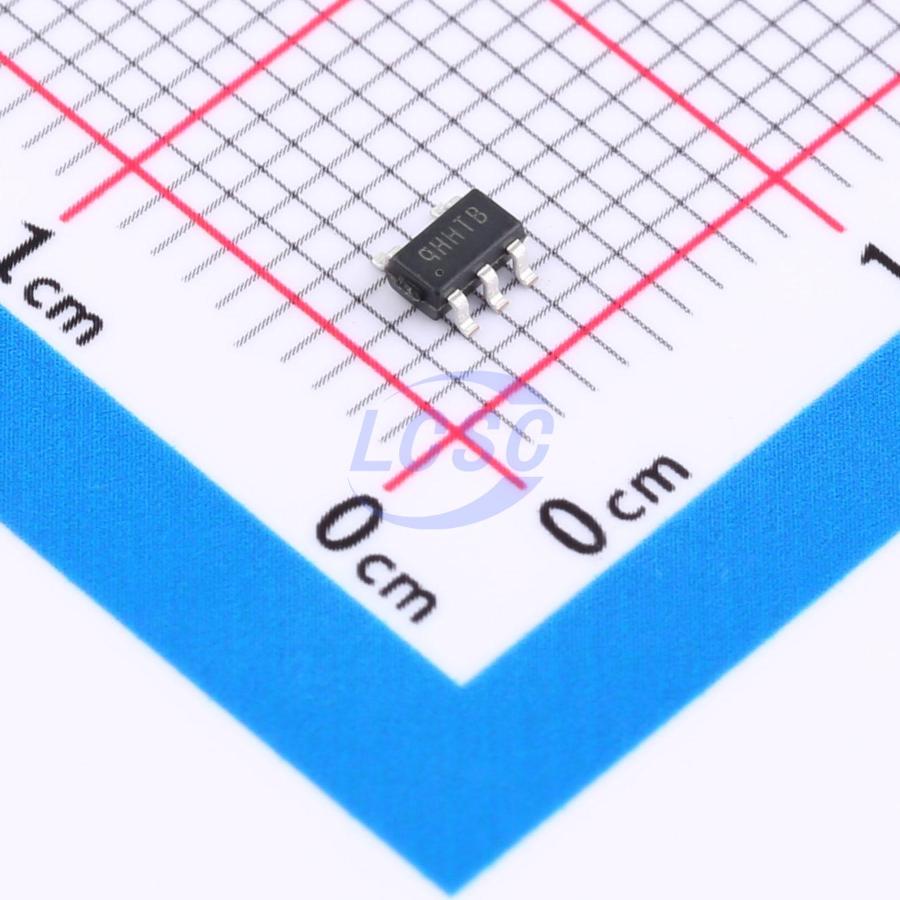

Packaged in a compact SOT23-5 surface-mount package, the SY8089A1AAC is suitable for space-constrained designs. Its applications include set-top boxes, USB dongles, media players, and smartphones.



The regulator supports 100% dropout operation and features an output auto-discharge function. It is RoHS compliant and Halogen free.

SY8089A1AAC Quick Information

Product Type: Synchronous Step Down Regulator
Canonical Name: SY8089A1AAC Synchronous Step Down DC/DC Regulator
Subcategory: Step Down Regulator

SY8089A1AAC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SY8089A1AAC Estimated Pricing

Qty Low High
1+ $1.92 $1.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

SY8089A1AAC Features

  • High efficiency synchronous step down regulator.
  • 2.5V to 5.5V input voltage range.
  • Up to 2A output current capability.
  • 1.5MHz switching frequency minimizes external components.
  • Compact SOT23-5 package for space saving.

SY8089A1AAC Applications

  • Suitable for set-top boxes.
  • Ideal for USB dongles.
  • Used in media players.
  • Designed for smartphones.
  • Consumer electronic power management.

SY8089A1AAC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the SY8089A1AAC?

The input voltage range is 2.5V to 5.5V.

What is the maximum output current of the SY8089A1AAC?

The SY8089A1AAC can deliver up to 2A of output current.

What is the switching frequency of the SY8089A1AAC?

The switching frequency is 1.5MHz.

What is the quiescent current for the SY8089A1AAC?

The quiescent current is 50μA.

What package type is the SY8089A1AAC available in?

The SY8089A1AAC is available in a SOT23-5 package.

Is the SY8089A1AAC RoHS compliant?

Yes, the SY8089A1AAC is RoHS3 Compliant.

Is the SY8089A1AAC Halogen Free?

Yes, the SY8089A1AAC is Halogen Free.
