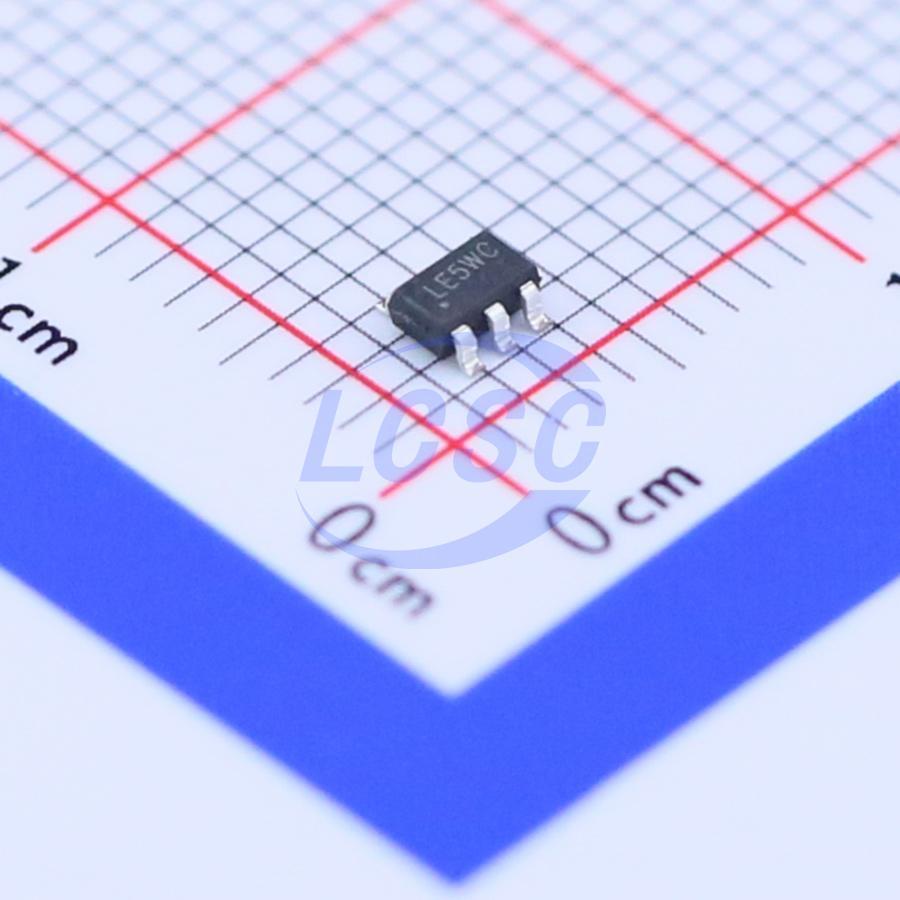

SY7152ABC The Silergy SY7152ABC is a high-efficiency boost regulator designed for general step-up applications. It features a 1MHz switching frequency and a compact SOT23-6 package.
Mfr Part #:

SY7152ABC

Available from 2 distributors
Mfr Name: Silergy
Silergy
The Silergy SY7152ABC is a high-efficiency boost regulator designed for general step-up applications. It features a 1MHz switching frequency and a compact SOT23-6 package.
✓ Total Stock: 10,405 pcs

SY7152ABC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
7,386 pcs
On Request
7386 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,019 pcs
On Request
3019 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SY7152ABC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Input Voltage
Mounting Type
Operating Temperature
Output Voltage
Power Dissipation
SVHC Present
View Similar Products (0)

SY7152ABC Description

Short technical summary and product information.

The Silergy SY7152ABC is a high-efficiency boost regulator suitable for general step-up applications. It operates with a wide input voltage range of 3V to 8V and can provide an output voltage up to 16V.



Key electrical characteristics include a 1MHz switching frequency, a minimum on-time and off-time of 100ns typical, and a low on-resistance of 150mΩ. The device features an accurate 0.6V reference voltage. It is housed in a compact SOT23-6 package and operates within a temperature range of -40°C to 85°C.



This regulator is ideal for applications such as WLED drivers and powering networking cards from PCI or PCI-express slots. The SY7152ABC is RoHS Compliant and Halogen Free.

SY7152ABC Quick Information

Product Type: Step Up Regulator
Canonical Name: SY7152ABC Step Up Regulator
Subcategory: Step Up Regulator

SY7152ABC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SY7152ABC Features

  • High efficiency boost regulator.
  • Wide 3V to 8V input range.
  • 16V maximum output voltage.
  • 1MHz switching frequency.
  • Compact SOT23-6 package.

SY7152ABC Applications

  • Ideal for battery-powered portable devices.
  • Used in point-of-load regulation.
  • Suitable for LED driver applications.
  • Applicable in industrial power supplies.

SY7152ABC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the SY7152ABC?

3V to 8V.

What is the maximum output voltage?

16V.

What is the switching frequency?

1MHz.

What is the operating temperature range?

-40°C to 85°C.

What package is the SY7152ABC available in?

SOT23-6.

What is the typical on-resistance?

150mΩ.

What is the reference voltage?

0.6V.
