| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
233 pcs
|
233 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel Type | |
| Channels per Circuit | |
| Input Signal | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Signal | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Supply Voltage | |
| Tape & Reel | |
| Translator Type |

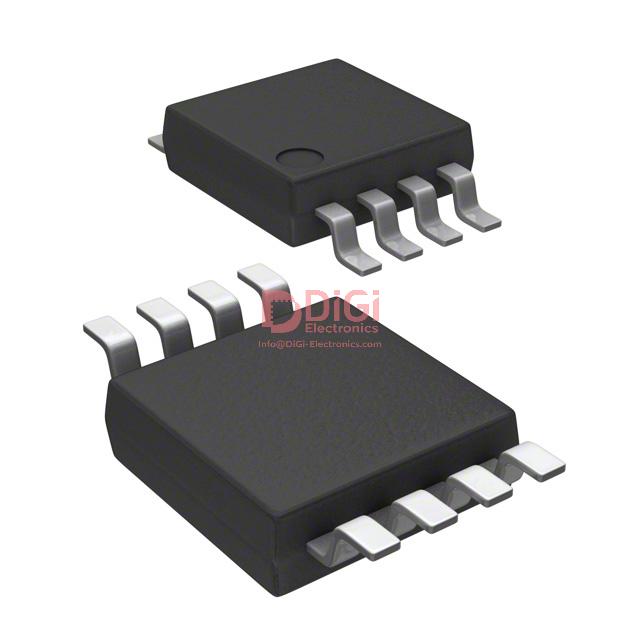

The SY100EPT20VZG-TR from Microchip Technology is a mixed-signal, unidirectional logic translator designed for high-speed applications. It facilitates the translation between LVCMOS/LVTTL input signals and LVPECL differential output signals.
This device is capable of operating with either a 3.3V or 5V power supply, offering flexibility for various system designs. It boasts a typical propagation delay of 300ps and a high bandwidth of up to 800MHz, making it suitable for demanding digital communication systems.
The SY100EPT20VZG-TR is housed in an 8-SOIC package, designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA). The translator features 1 circuit with 1 unidirectional channel, providing a differential LVPECL output.
Key electrical characteristics include a maximum ICC of 20mA. The PNP LVTTL input ensures minimal loading. The Q output defaults to HIGH with inputs open. This translator is ideal for applications requiring space efficiency and high performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SY100EPT20VZG-TR is a mixed-signal, unidirectional logic translator.
It accepts LVCMOS and LVTTL input signals and provides LVPECL output signals.
The device can operate with either a 3.3V or 5V supply voltage.
The typical propagation delay is 300 picoseconds.
The device has a high bandwidth of up to 800 MHz.
It is supplied in an 8-SOIC package.
The operating temperature range is -40°C to 85°C (TA).
