| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,366 pcs
|
3366 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Ratio | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The SY100E111JC from Microchip Technology (formerly Micrel) is a high-performance 1-to-9 differential clock driver. Designed for clock distribution in ECL systems, it accepts a single differential or single-ended input and fans out the signal to nine identical differential outputs. The device includes an enable input that disables the outputs when asserted high.
Key features include low skew and guaranteed skew limits, making it suitable for applications requiring precise timing. It operates with a VCC range of 4.2V to 5.5V and is compatible with industry-standard 10KH and 100K I/O levels. The SY100E111JC also provides a VBB output for single-ended operation and features 75KΩ input pulldown resistors.

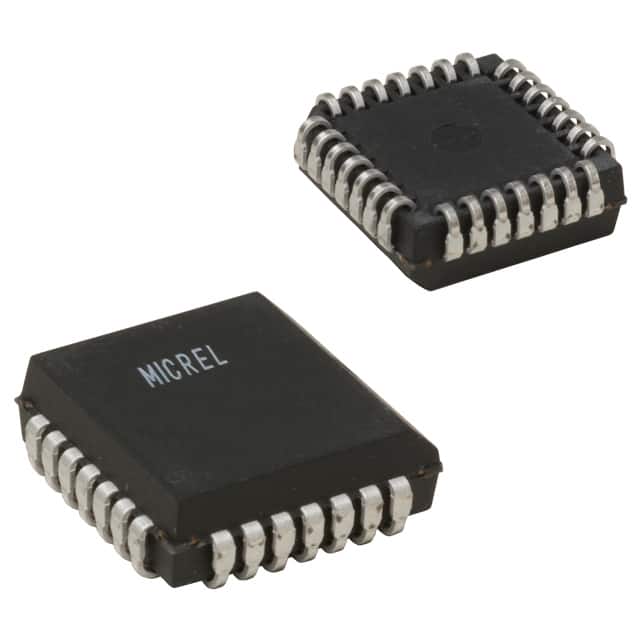

This component is available in a 28-pin PLCC (Plastic Leaded Chip Carrier) package, designed for surface mounting. The operating temperature range is 0°C to 85°C. Termination into 50Ω is recommended for both sides of the differential outputs to ensure minimal skew, even if only one side is utilized.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.44 | $4.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.2V to 5.5V.
The SY100E111JC is available in a 28-PLCC (J-Lead) package.
The operating temperature range is 0°C to 85°C.
The SY100E111JC has a fanout ratio of 1:9.
Yes, the SY100E111JC supports differential signaling for both input and output.
