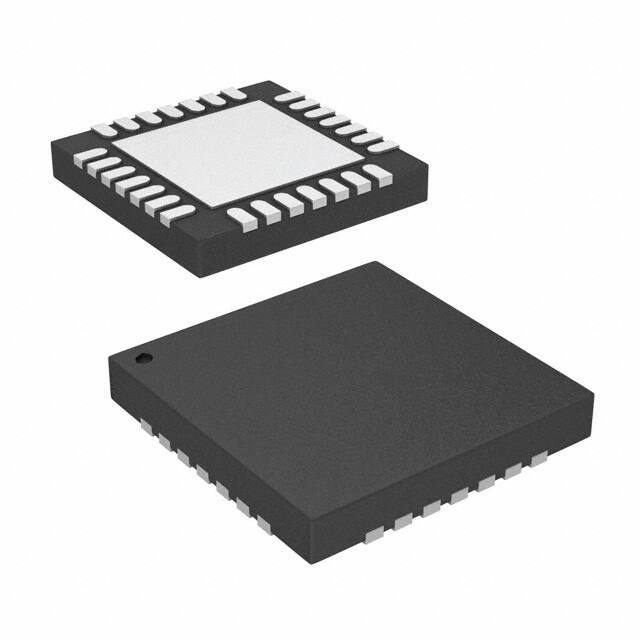

SX1503I091TRT The Semtech SX1503I091TRT is a 16-channel low voltage GPIO expander featuring an I2C interface and operating voltage range of 1.2V to 5.5V. It is supplied in a 28-QFN-UT package.
Mfr Part #:

SX1503I091TRT

Available from 2 distributors
Mfr Name: Semtech
Semtech
The Semtech SX1503I091TRT is a 16-channel low voltage GPIO expander featuring an I2C interface and operating voltage range of 1.2V to 5.5V. It is supplied in a 28-QFN-UT package.
✓ Total Stock: 3,542 pcs
$ Price Range: $1.15

SX1503I091TRT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,421 pcs
On Request
3421 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
121 pcs
On Request
121 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SX1503I091TRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Features
Interface
Interrupt Output
Mounting Type
Number of I
Operating Temperature
Output Type
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

SX1503I091TRT Description

Short technical summary and product information.

The Semtech SX1503I091TRT is a 16-channel General Purpose Input/Output (GPIO) expander designed for low-power handheld battery-powered equipment. It allows for serial expansion of I/O through a standard 400kHz I2C interface, providing additional control and monitoring capabilities when a microcontroller has insufficient ports.



This device supports an operating voltage range of 1.2V to 5.5V, with independent voltage operation for core and I/O banks. The I/O pins are 5.5V compatible and can sink up to 24mA. Key features include programmable pull-up/pull-down resistors, push-pull outputs, and mask-programmable interrupts with an open-drain active-low output. It also includes Power-On Reset (POR).



The SX1503I091TRT is housed in a compact 28-QFN-UT (4x4mm) package, suitable for surface mounting. It operates within a temperature range of -40°C to +85°C, making it suitable for various environmental conditions.

SX1503I091TRT Quick Information

Product Type: IO Expander
Canonical Name: Semtech SX1503I091TRT 16-Channel Low Voltage GPIO Expander
Subcategory: IO Expanders

SX1503I091TRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SX1503I091TRT Estimated Pricing

Qty Low High
1+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1503I091TRT Features

  • 16-channel low voltage GPIO expander.
  • I2C interface with 400kHz clock.
  • 1.2V to 5.5V independent voltage rails.
  • Programmable pull-up/pull-down resistors.
  • Compact 28-QFN-UT surface mount package.

SX1503I091TRT Applications

  • Ideal for low power handheld devices.
  • Provides serial I/O expansion.
  • Acts as a level shifter.
  • Enhances microcontroller control.

SX1503I091TRT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SX1503I091TRT?

The operating voltage range is 1.2V to 5.5V.

How many I/O channels does the SX1503I091TRT have?

The SX1503I091TRT has 16 I/O channels.

What interface does the SX1503I091TRT use?

The SX1503I091TRT uses an I²C interface.

What is the package type for the SX1503I091TRT?

The package type is 28-QFN-UT (4x4).

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.
