Mfr Part #:

SX1308IMLTRT

Mfr Name: Semtech

The Semtech SX1308IMLTRT is a digital baseband chip designed for LoRa communication, offering gateway capabilities. It integrates LoRa concentrator IP.

✓ Total Stock: 11,964 pcs

$ Price Range: $44.15

SX1308IMLTRT Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	9,198 pcs On Request	9198 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	2,500 pcs On Request	2500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	266 pcs On Request	266 pcs	On Request	1	On Request	On Request	1717+	On Request	On Request

SX1308IMLTRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	RF Misc ICs and Modules
Manufacturer Name	Semtech
Function	Gateway
Mounting Type	Surface Mount
RF Type	GPS
Sensitivity	-139 dBm
Supplier Device Package	64-QFN (9x9)
Tape & Reel	Tape & Reel

View Similar Products (0)

SX1308IMLTRT Description

Short technical summary and product information.

The Semtech SX1308IMLTRT is a digital baseband chip engineered for long-range ISM communication, providing breakthrough gateway capabilities worldwide. It integrates LoRa concentrator IP, enabling high performance in applications like smart metering, security sensor networks, and agricultural monitoring.

Key features include a sensitivity of up to -139 dBm with compatible front-ends and 70 dB CW interferer rejection at a 1 MHz offset. The chip can operate with negative SNR and supports CCR up to 9 dB. It emulates 49 LoRa demodulators and 1 (G)FSK demodulator, offering 10 programmable parallel demodulation paths for dynamic data-rate adaptation and true antenna diversity or simultaneous dual-band operation.

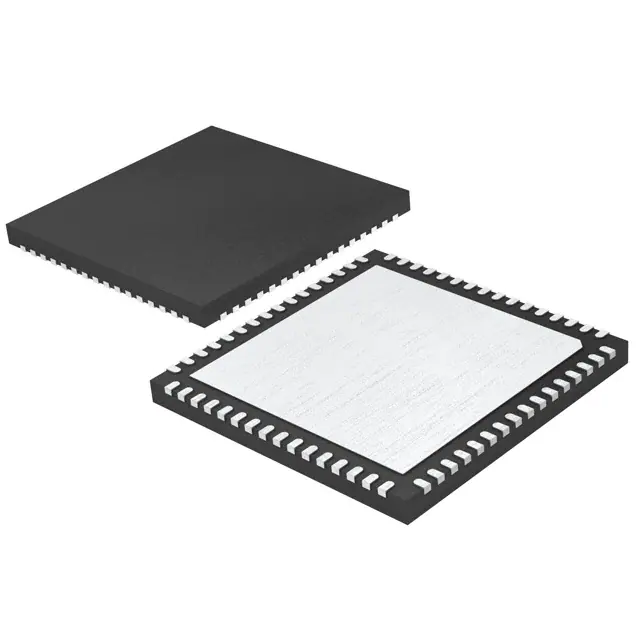

This component is housed in a 64-VFQFN exposed pad package and is designed for surface mount applications. It is supplied in tape & reel packaging with a standard package quantity of 3,000 parts.

SX1308IMLTRT Quick Information

Product Type: Digital Baseband Chip

Series: LoRa™

Canonical Name: Semtech SX1308 Digital Baseband Chip for Long Range ISM Communication

Subcategory: RF Misc ICs and Modules

SX1308IMLTRT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SX1308IMLTRT Estimated Pricing

Qty	Low	High
1+	$44.15	$44.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1308IMLTRT Features

Up to -139 dBm sensitivity.
70 dB CW interferer rejection.
Emulates 49 LoRa demodulators.
10 programmable parallel demodulation paths.
Designed for IoT applications.

SX1308IMLTRT Applications

Ideal for smart metering.
Suitable for security sensor networks.
Used in agricultural monitoring.
Enables Internet of Things (IoT) solutions.

SX1308IMLTRT FAQs

6 frequently asked questions generated from this part’s specifications.

What is the sensitivity of the SX1308IMLTRT?

The maximum sensitivity of the SX1308IMLTRT is -139 dBm when tested with SX1257 or SX1255 front-end modules.

What is the CW interferer rejection of the SX1308IMLTRT?

The typical CW interferer rejection at 1 MHz offset is 70 dB.

How many demodulators does the SX1308IMLTRT have?

It includes 49 LoRa and 1 GFSK demodulators.

What is the package type of the SX1308IMLTRT?

It is packaged in a 64-VFQFN exposed pad package with a 64-QFN (9x9) device package.

What is the mounting type for the SX1308IMLTRT?

The device is designed for surface-mount applications.

Is the SX1308IMLTRT RoHS compliant?

Yes, it is RoHS3 compliant.
