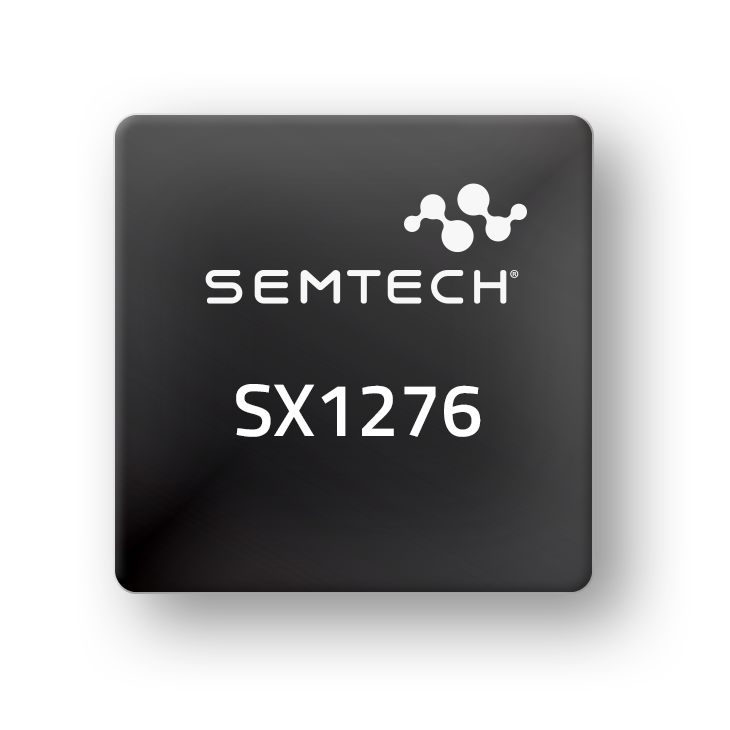

SX1276IMLTRT The Semtech SX1276IMLTRT is an RF Transceiver IC operating in the 137MHz to 1.02GHz frequency range. It supports the LoRa protocol and features a maximum data rate of 300kbps.
Mfr Part #:

SX1276IMLTRT

Available from 7 distributors
Mfr Name: Semtech
Semtech
The Semtech SX1276IMLTRT is an RF Transceiver IC operating in the 137MHz to 1.02GHz frequency range. It supports the LoRa protocol and features a maximum data rate of 300kbps.
✓ Total Stock: 64,335 pcs
$ Price Range: $3.43

SX1276IMLTRT Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SX1276IMLTRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Data Rate (Max)
Frequency
GPIO
Lead Spacing
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Type
Voltage
View Similar Products (0)

SX1276IMLTRT Description

Short technical summary and product information.

The Semtech SX1276IMLTRT is a versatile RF Transceiver IC designed for various wireless applications. It operates across a wide frequency range from 137 MHz to 1.02 GHz, supporting the LoRa protocol and achieving a maximum data rate of 300kbps. This device is suitable for ISM band applications and offers modulation formats including FSK, GFSK, GMSK, MSK, and OOK.



With an output power range of -1 dBm to +20 dBm and a sensitivity down to -148 dBm, the SX1276IMLTRT provides robust communication capabilities. It features an SPI interface for easy integration and requires a supply voltage between 1.8V and 3.7V. The typical supply current is 10.8mA to 12mA.



This RF Transceiver IC is housed in a 28-VQFN Exposed Pad package, measuring 28-QFN (6x6). It is designed for surface mount installation and operates within a temperature range of -40°C to 85°C. The device includes 6 GPIO pins for flexible control.

SX1276IMLTRT Quick Information

Product Type: RF Transceiver IC
Series: LoRa
Canonical Name: Semtech SX1276IMLTRT RF Transceiver
Subcategory: Wireless & RF Integrated Circuits

SX1276IMLTRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SX1276IMLTRT Estimated Pricing

Qty Low High
1+ $3.43 $3.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1276IMLTRT Features

  • Operates from 137 MHz to 1.02 GHz.
  • Supports LoRa protocol and 300kbps data rate.
  • Wide output power from -1 dBm to +20 dBm.
  • High sensitivity down to -148 dBm.
  • Surface mountable 28-VQFN package.

SX1276IMLTRT Applications

  • Ideal for ISM band wireless applications.
  • Suitable for long-range low-power communication.
  • Used in IoT and sensor network devices.
  • Enables robust RF communication links.

SX1276IMLTRT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the SX1276IMLTRT?

The operating frequency range is 137 MHz to 1.02 GHz.

What is the maximum data rate for the SX1276IMLTRT?

The maximum data rate is 300kbps.

What modulation formats does the SX1276IMLTRT support?

It supports FSK, GFSK, GMSK, MSK, LoRa, and OOK modulation formats.

What is the output power of the SX1276IMLTRT?

The output power ranges from -1 dBm to +20 dBm.

What is the supply voltage range for this RF Transceiver IC?

The supply voltage range is 1.8V to 3.7V.

What package type is the SX1276IMLTRT supplied in?

It is supplied in a 28-VQFN Exposed Pad package.

What is the operating temperature range for the SX1276IMLTRT?

The operating temperature range is -40°C to 85°C.
