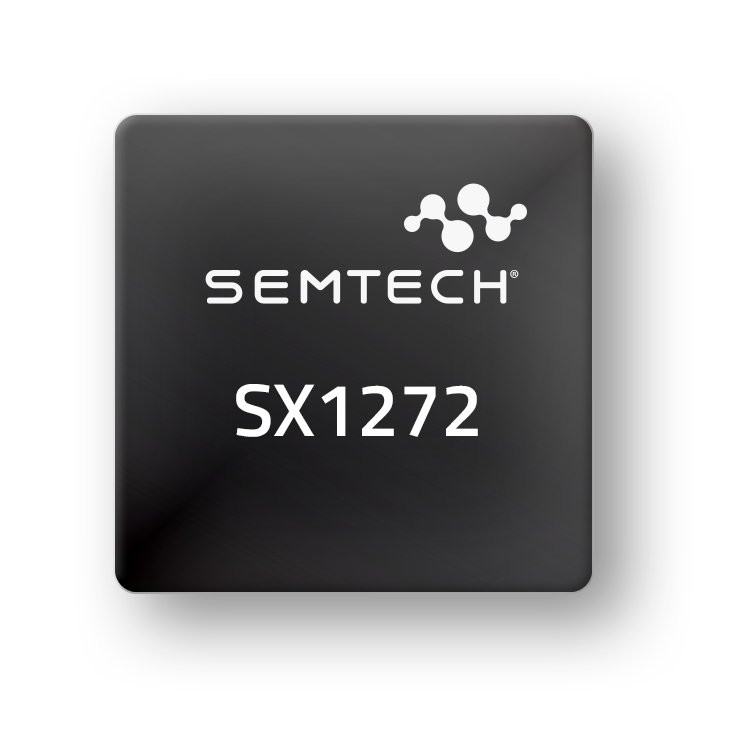

SX1272IMLTRT The Semtech SX1272IMLTRT is an RF Transceiver IC utilizing the LoRa protocol for long-range, low-power wireless communication. It operates in the 860-1020MHz frequency range.
Mfr Part #:

SX1272IMLTRT

Available from 5 distributors
Mfr Name: Semtech
Semtech
The Semtech SX1272IMLTRT is an RF Transceiver IC utilizing the LoRa protocol for long-range, low-power wireless communication. It operates in the 860-1020MHz frequency range.
✓ Total Stock: 41,992 pcs
$ Price Range: $3.43

SX1272IMLTRT Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SX1272IMLTRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Data Rate (Max)
Frequency
GPIO
Lead Spacing
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Type
Voltage
View Similar Products (0)

SX1272IMLTRT Description

Short technical summary and product information.

The Semtech SX1272IMLTRT is a highly integrated RF Transceiver IC designed for long-range, low-power wireless applications. It supports the LoRa™ protocol and operates within the 860MHz to 1.02GHz frequency band, making it suitable for various IoT deployments.



Key electrical specifications include an operating voltage range of 1.8V to 3.7V, an operating current draw of 10.5mA to 11.2mA, and a transmit power of up to 20dBm. The device boasts a receive sensitivity of -137dBm and a maximum data rate of 300kbps. It supports multiple modulation schemes including FSK, GFSK, GMSK, MSK, and OOK, and interfaces via SPI.



This transceiver is housed in a 28-VQFN Exposed Pad package, designed for surface mount applications. It operates reliably within a temperature range of -40°C to 85°C. The SX1272IMLTRT is part of Semtech's LoRa platform, known for enabling efficient and productive IoT solutions.

SX1272IMLTRT Quick Information

Product Type: RF Transceiver IC
Canonical Name: Semtech SX1272IMLTRT RF Transceiver IC
Subcategory: RF Transceiver ICs

SX1272IMLTRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SX1272IMLTRT Estimated Pricing

Qty Low High
1+ $3.43 $3.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1272IMLTRT Features

  • LoRa protocol for long-range communication.
  • Operates in 860-1020MHz frequency range.
  • High sensitivity of -137dBm.
  • Supports multiple modulation types.
  • Surface mount 28-VQFN package.

SX1272IMLTRT Applications

  • Ideal for IoT sensor networks.
  • Suitable for long-range wireless applications.
  • Enables efficient data analytics.
  • Used in smart agriculture solutions.
  • Applicable in smart city infrastructure.

SX1272IMLTRT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SX1272IMLTRT?

The operating voltage range is 1.8V to 3.7V.

What is the maximum transmit power of the SX1272IMLTRT?

The maximum transmit power is 20dBm.

What is the receive sensitivity of the SX1272IMLTRT?

The receive sensitivity is -137dBm.

What is the operating temperature range for this RF transceiver?

The operating temperature range is -40°C to 85°C.

What package type is the SX1272IMLTRT supplied in?

It is supplied in a 28-VQFN Exposed Pad package.
