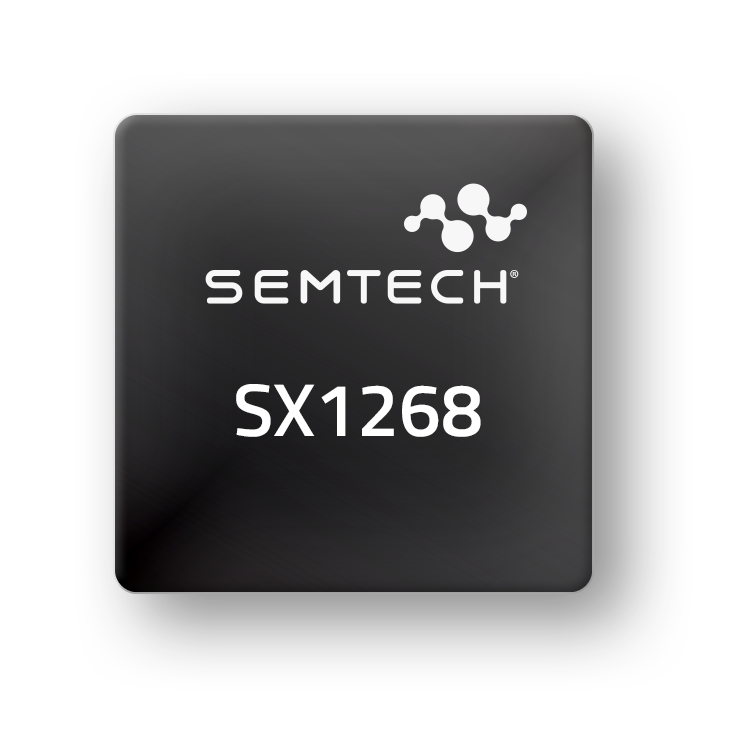

SX1268IMLTRT The Semtech SX1268IMLTRT is an RF Transceiver IC supporting the LoRaWAN protocol. It operates across a frequency range of 410MHz to 810MHz with a maximum output power of +22dBm.
Mfr Part #:

SX1268IMLTRT

Available from 4 distributors
Mfr Name: Semtech
Semtech
The Semtech SX1268IMLTRT is an RF Transceiver IC supporting the LoRaWAN protocol. It operates across a frequency range of 410MHz to 810MHz with a maximum output power of +22dBm.
✓ Total Stock: 16,574 pcs
$ Price Range: $3.43

SX1268IMLTRT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request 20+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,126 pcs
On Request
4126 pcs On Request 1 On Request On Request 2020+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,436 pcs
On Request
2436 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,012 pcs
On Request
1012 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SX1268IMLTRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
Lead Spacing
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Type
Voltage
View Similar Products (0)

SX1268IMLTRT Description

Short technical summary and product information.

The Semtech SX1268IMLTRT is a highly integrated RF Transceiver IC designed for LoRaWAN applications. It supports a wide frequency range from 410MHz to 810MHz, making it versatile for various regional deployments. This device offers a maximum output power of +22dBm and a receiver sensitivity down to -148dBm, enabling long-range communication.



Featuring a TxRx + MCU type, the SX1268IMLTRT is suitable for Internet of Things (IoT) devices. It operates with a supply voltage between 1.8V and 3.7V and consumes minimal current, ranging from 4.2mA to 10.1mA. The transceiver supports multiple modulation schemes including FSK, GFSK, GMSK, and MSK, with a maximum data rate of 300kbps.



Designed for surface mounting, the component comes in a 24-VFQFN Exposed Pad package, specifically a 24-QFN (4x4) supplier device package. It operates within an industrial temperature range of -40°C to 85°C. The SX1268IMLTRT is compliant with RoHS3 standards and has an MSL rating of 1.

SX1268IMLTRT Quick Information

Product Type: RF Transceiver IC
Canonical Name: Semtech SX1268IMLTRT LoRa Connect Transceiver
Subcategory: RF Transceiver ICs

SX1268IMLTRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SX1268IMLTRT Estimated Pricing

Qty Low High
1+ $3.43 $3.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1268IMLTRT Features

  • LoRaWAN protocol RF transceiver with MCU.
  • Wide frequency range: 410MHz to 810MHz.
  • High output power: +22dBm.
  • Low receiver sensitivity: -148dBm.
  • Surface mount 24-VFQFN package.

SX1268IMLTRT Applications

  • Ideal for IoT sensor networks.
  • Enables long-range wireless communication.
  • Suitable for smart agriculture applications.
  • Used in smart city infrastructure.
  • Applicable in industrial monitoring systems.

SX1268IMLTRT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SX1268IMLTRT?

The operating voltage range is 1.8V to 3.7V.

What package type is the SX1268IMLTRT supplied in?

The SX1268IMLTRT is supplied in a 24-VFQFN Exposed Pad package.

What is the operating temperature range for the SX1268IMLTRT?

The operating temperature range is -40°C to 85°C.

What is the maximum output power of the SX1268IMLTRT?

The maximum output power is +22dBm.

What is the receiver sensitivity of the SX1268IMLTRT?

The receiver sensitivity is -148dBm.

What modulation types does the SX1268IMLTRT support?

The SX1268IMLTRT supports FSK, GFSK, GMSK, and MSK modulation.

What is the maximum data rate for the SX1268IMLTRT?

The maximum data rate is 300kbps.
