SX1230I066TRT The Semtech SX1230I066TRT is an RF transmitter IC operating in the ISM band. It supports frequencies from 315MHz to 915MHz with a maximum data rate of 600kbps.
Mfr Part #:

SX1230I066TRT

Available from 1 distributors
Mfr Name: Semtech
Semtech
The Semtech SX1230I066TRT is an RF transmitter IC operating in the ISM band. It supports frequencies from 315MHz to 915MHz with a maximum data rate of 600kbps.
✓ Total Stock: 1,600 pcs
$ Price Range: $2.22

SX1230I066TRT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SX1230I066TRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Connector
Applications
Current
Data Interface
Data Rate (Max)
Frequency
Modulation or Protocol
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

SX1230I066TRT Description

Short technical summary and product information.

The Semtech SX1230I066TRT is an RF transmitter integrated circuit designed for ISM band applications. It supports multiple frequencies including 315MHz, 434MHz, 868MHz, and 915MHz, offering flexibility for various regional requirements.



This device features a maximum data rate of 600kbps and can deliver up to 17dBm of power. It operates within a voltage range of 1.8V to 3.7V and consumes approximately 95mA of current. The operating temperature range is from -40°C to 85°C, making it suitable for demanding environments.

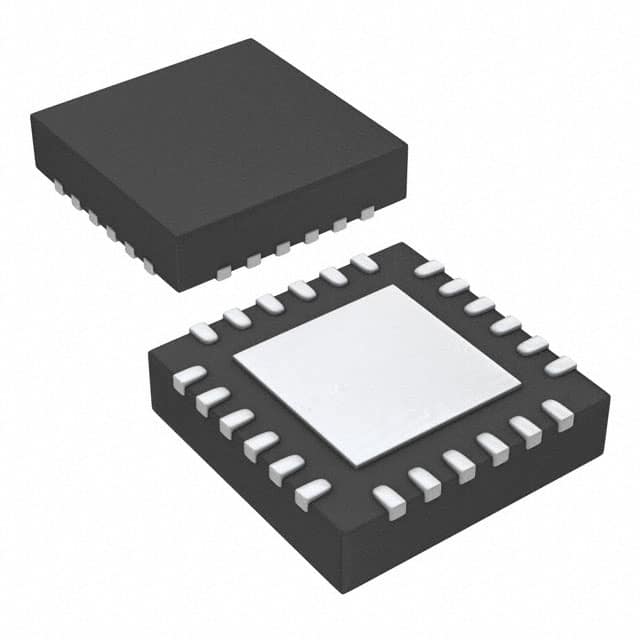

The SX1230I066TRT comes in a 24-VFQFN Exposed Pad package, specifically a 24-MLPQ (4x4) supplier device package. It is designed for surface mount applications.



This RF transmitter is suitable for applications such as Remote Keyless Entry (RKE) systems, providing reliable wireless communication capabilities.

SX1230I066TRT Quick Information

Product Type: RF Transmitter
Canonical Name: Semtech SX1230I066TRT RF Transmitter
Subcategory: RF Transmitters

SX1230I066TRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SX1230I066TRT Estimated Pricing

Qty Low High
1+ $2.22 $2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

SX1230I066TRT Features

  • Supports 315, 434, 868, 915MHz frequencies.
  • Maximum data rate of 600kbps.
  • 17dBm output power.
  • Wide operating voltage range 1.8V to 3.7V.
  • Surface mount 24-VFQFN package.

SX1230I066TRT Applications

  • Used in wireless sensor networks
  • Suitable for remote control systems
  • Ideal for industrial wireless applications
  • Supports battery-powered devices

SX1230I066TRT FAQs

6 frequently asked questions generated from this part’s specifications.
What frequencies does the SX1230I066TRT support?

It supports 315 MHz, 434 MHz, 868 MHz, and 915 MHz frequencies.

What is the maximum data rate of the SX1230I066TRT?

The maximum data rate is 600 kbps.

What is the operating voltage range for the SX1230I066TRT?

It operates within a voltage range of 1.8V to 3.7V.

What is the power output of the SX1230I066TRT?

The power output is 17 dBm.

What package type is used for the SX1230I066TRT?

It is packaged in a 24-VFQFN exposed pad package.

What is the operating temperature range for the SX1230I066TRT?

It operates from -40°C to 85°C.
