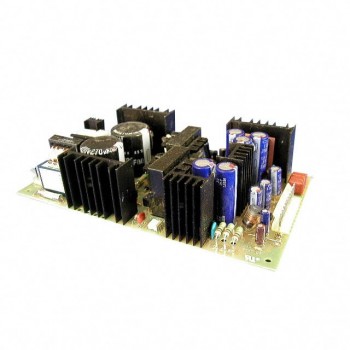

The TDK Corporation SWT40-525 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a total power of 40W with multiple output voltages: 5V, 12V, and -5V. The input voltage range is a versatile 85 to 265 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of 70% and an isolation voltage of 3 kV. The operating temperature range is from 0°C to 50°C. The converter has three outputs with maximum current ratings of 3A for the 5V output, 2A for the 12V output, and 300mA for the -5V output.
Mechanically, the SWT40-525 features a chassis mount design with dimensions of 127.0mm x 76.2mm x 35.6mm. It is compliant with CE, cUR, and UR agency approvals. This model is part of the SWT (40W) series.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The converter is designed for reliable operation in commercial IT equipment.
The SWT40-525 provides three output voltages: 5V, 12V, and -5V.
The input voltage range for the SWT40-525 is 85 to 265 VAC.
The maximum power output of the SWT40-525 is 40W.
The operating temperature range for the SWT40-525 is 0°C to 50°C.
The SWT40-525 uses chassis mount.
