| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

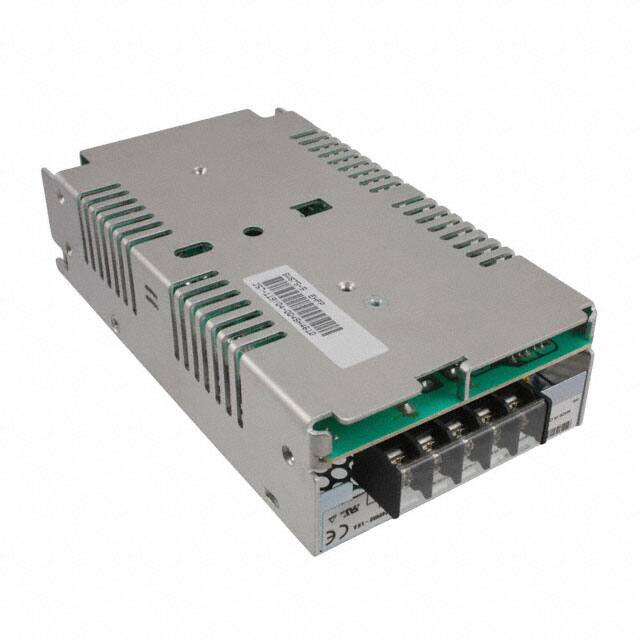

The TDK Corporation SWS75-15 is a versatile 75W AC/DC power supply designed for ITE (Commercial) applications. It offers a single output of 15V at 5A, with an adjustable output range and a typical efficiency of 85%.
This enclosed unit is designed for chassis mounting, making it suitable for integration into various systems. Key features include Power Factor Correction (PFC) and universal input capability, allowing operation from 85-265 VAC. The operating temperature range is -10°C to +60°C (open frame), with derating applied at higher temperatures.
Safety and reliability are supported by approvals from CE, cURus, and TUV. The power supply also includes overcurrent and overvoltage protection mechanisms. Its dimensions are 169.9mm x 94.0mm x 42.9mm.
The SWS75-15 provides a nominal output of 15V at 5A, with an adjustable range of 13.5-16.5V.
The AC input voltage range is 85-265 VAC, and the DC input voltage range is 110-330 VDC.
The operating temperature range is -10°C to +60°C, with linear derating to 70% load from 50°C to 60°C.
It is approved to UL60950-1, CSA60950-1, and EN60950-1 standards, with CE, cURus, and TUV markings.
Typical efficiency is 85%.
It uses convection cooling.
The dimensions are 169.9 mm (6.69") in length, 94.0 mm (3.70") in width, and 42.9 mm (1.69") in height.
