| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

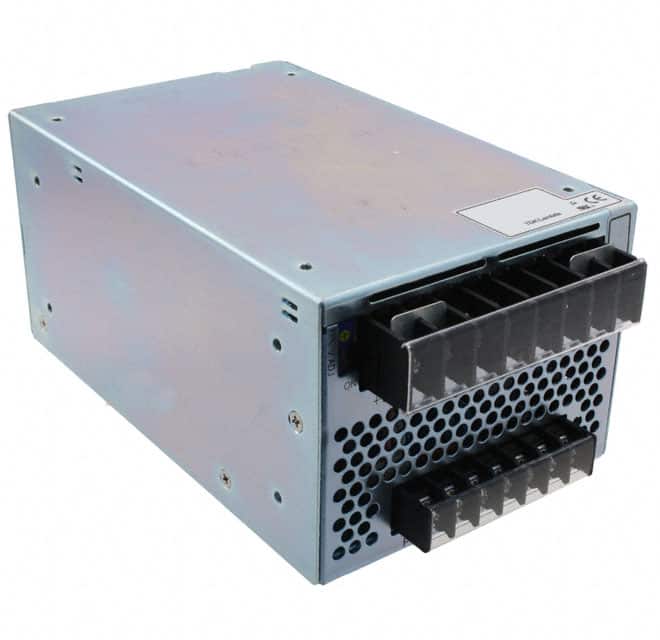

The TDK Corporation SWS600-12 is a high-power AC/DC converter designed for general-purpose applications. It delivers 600W of power with a single 12V output at 50A.
Key electrical specifications include a universal input voltage range of 85-265VAC, active power factor correction meeting EN61000-3-2 standards, and an efficiency of 78%. The converter offers overcurrent, overvoltage, and overtemperature protection for reliable operation.
Designed for industrial environments, the SWS600-12 features a robust enclosed type and chassis mount for secure installation. It operates within a temperature range of -10 to +65°C and meets various safety agency approvals including CE, cURus, and TUV.
This power supply is suitable for ITE (Commercial) applications and offers features such as adjustable output, load sharing, remote on/off, and remote sense capabilities.
85-265VAC (47-63Hz) or 120-370VDC.
-10 to +65°C.
12V at 50A.
Yes, overvoltage protection is set at 60-69.6V.
78%.
190.0mm x 91.9mm x 119.9mm (7.48 x 3.62 x 4.72 inches).
Yes, it is SEMI F47 certified for 208VAC input.
