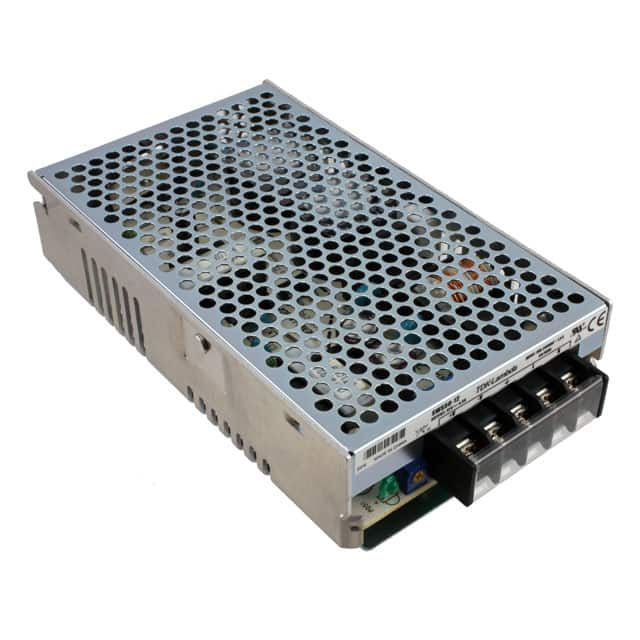

The TDK Corporation SWS50-24 is an enclosed AC/DC power supply designed for industrial applications. It provides a 50W output power with a nominal voltage of 24V and a current rating of 2.1A. This converter features universal input voltage capability (85-265 VAC), making it suitable for global use.
Key electrical specifications include an efficiency of 84% and Power Factor Correction (PFC). The operating temperature range is -20°C to 74°C with derating. It offers adjustable output voltage and is designed for chassis mounting.
Compliance is certified by CE, cURus, and TUV. The unit meets EN55022-B, FCC Class B, and VCCI-B standards for conducted and radiated emissions. The dimensions are 159.0mm x 91.9mm x 37.1mm.
The SWS50-24 is an enclosed AC/DC converter designed for chassis mount installation.
Under open frame conditions, it operates from -10°C to +60°C. With derating, the range is -20°C to +74°C.
Output voltage is 24V DC, current is 2.1A, and power is 50W.
AC input range: 85-265 VAC; DC input range: 110-330 VDC.
Typical efficiency is 84%.
Overcurrent protection at approximately 125% and overvoltage protection at approximately 115-130% with manual reset.
It holds UL60950-1, CSA60950-1, EN60950-1, and CE Mark approvals.
