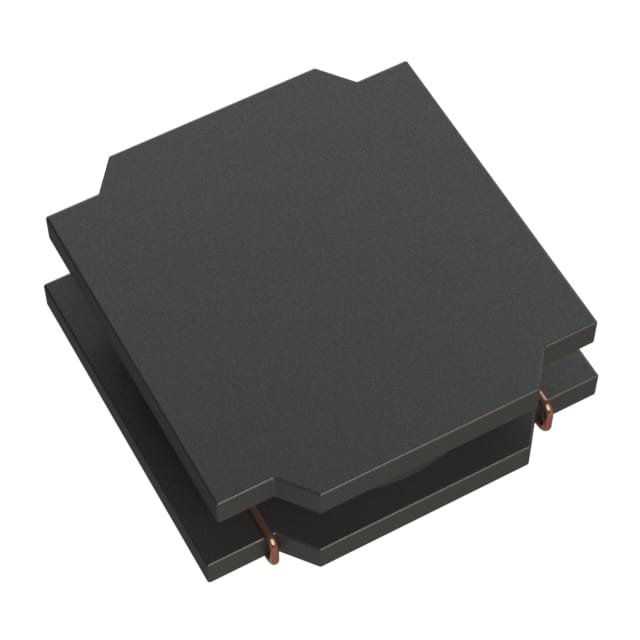

SWPA8040S3R6NT The SUNLORD SWPA8040S3R6NT is a shielded, drum core, wirewound fixed inductor with a 3.6 µH inductance value. It features a surface mount package and a current rating of 4.35A.
Mfr Part #:

SWPA8040S3R6NT

Available from 1 distributors
Mfr Name: Sunlord
Sunlord
The SUNLORD SWPA8040S3R6NT is a shielded, drum core, wirewound fixed inductor with a 3.6 µH inductance value. It features a surface mount package and a current rating of 4.35A.
✓ Total Stock: 200 pcs
$ Price Range: $0.52

SWPA8040S3R6NT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SWPA8040S3R6NT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current - Saturation (ISAT)
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Frequency - Self Resonant
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

SWPA8040S3R6NT Description

Short technical summary and product information.

The SWPA8040S3R6NT from Shenzhen Sunlord Electronics Co., Ltd. is a shielded, wirewound fixed inductor designed for surface mounting. It offers an inductance of 3.6 µH with a tolerance of ±30% and a maximum DC resistance of 22 mOhm.



This inductor operates within a temperature range of -40°C to 125°C and has a current rating of 4.35A. Its dimensions are 8.00mm x 8.00mm with a height of 4.20mm. The ferrite core material and shielded construction make it suitable for various electronic applications requiring stable inductance and current handling capabilities.



Key electrical characteristics include a saturation current of 5.75A and a self-resonant frequency of 26MHz. The component is supplied in a nonstandard package, typically on tape and reel.

SWPA8040S3R6NT Quick Information

Product Type: Fixed Inductor
Series: SWPA
Canonical Name: SWPA8040S3R6NT Drum Core Wirewound Shielded Fixed Inductor 3.6 µH ±30% 4.35A 22mOhm
Subcategory: Drum Core, Wirewound

SWPA8040S3R6NT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWPA8040S3R6NT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

SWPA8040S3R6NT Features

  • Shielded drum core wirewound fixed inductor.
  • 3.6 µH inductance with ±30% tolerance.
  • Rated for 4.35A current and 5.75A saturation.
  • Surface mount package with 8.00mm x 8.00mm footprint.
  • Operates from -40°C to 125°C.

SWPA8040S3R6NT Applications

  • Suitable for power supply circuits.
  • Used in DC-DC converters.
  • Applicable in filtering applications.
  • Ideal for signal processing.

SWPA8040S3R6NT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the SWPA8040S3R6NT?

The inductance value is 3.6 µH.

What is the maximum current rating for the SWPA8040S3R6NT?

The maximum current rating is 4.35A.

What is the DC resistance (DCR) of this inductor?

The maximum DC resistance is 22 mOhm.

What is the operating temperature range for the SWPA8040S3R6NT?

The operating temperature range is -40°C to 125°C.

What type of package is the SWPA8040S3R6NT in?

It is a surface mount inductor in a nonstandard package, supplied on tape and reel.

What is the self-resonant frequency of the SWPA8040S3R6NT?

The self-resonant frequency is 26MHz.
