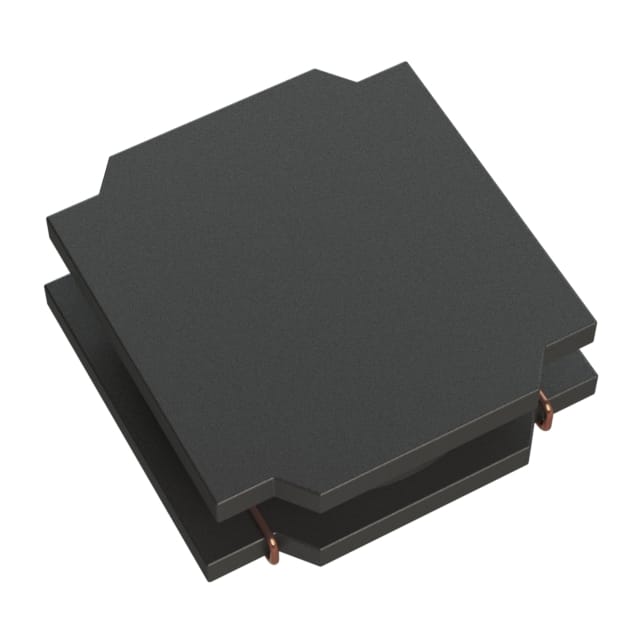

SWPA6045S6R8MT The SUNLORD SWPA6045S6R8MT is a shielded, wirewound fixed inductor with a 6.8µH inductance and a 3A current rating. It is designed for surface mount applications.
Mfr Part #:

SWPA6045S6R8MT

Available from 1 distributors
Mfr Name: Sunlord
Sunlord
The SUNLORD SWPA6045S6R8MT is a shielded, wirewound fixed inductor with a 6.8µH inductance and a 3A current rating. It is designed for surface mount applications.
✓ Total Stock: 1,370 pcs
$ Price Range: $0.52

SWPA6045S6R8MT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,370 pcs
On Request
1370 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SWPA6045S6R8MT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

SWPA6045S6R8MT Description

Short technical summary and product information.

This SUNLORD SWPA6045S6R8MT is a fixed inductor featuring a drum core and wirewound construction, offering a reliable inductance of 6.8µH with a tolerance of ±20%. It is designed to handle a current rating of 3A and has a maximum DC resistance of 40mOhm.



The inductor operates within a temperature range of -40°C to 125°C and is shielded to minimize electromagnetic interference. Its dimensions are 6.00mm in length and width, with a height of 4.50mm, making it suitable for surface mount applications.



With a ferrite material composition and a frequency rating of 20MHz, this component is suitable for various electronic circuits requiring stable inductance. The RoHS3 compliant status indicates adherence to environmental regulations.

SWPA6045S6R8MT Quick Information

Product Type: Fixed Inductor
Canonical Name: SUNLORD SWPA6045S6R8MT Drum Core, Wirewound Fixed Inductor
Subcategory: Drum Core, Wirewound

SWPA6045S6R8MT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWPA6045S6R8MT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

SWPA6045S6R8MT Features

  • Shielded wirewound drum core inductor.
  • 6.8µH inductance with ±20% tolerance.
  • Rated for 3A continuous current.
  • Low 40mOhm maximum DCR.
  • Surface mountable ferrite construction.

SWPA6045S6R8MT Applications

  • Suitable for power supply filtering.
  • Used in DC-DC converter circuits.
  • Ideal for signal line applications.
  • Component for noise suppression.

SWPA6045S6R8MT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the SWPA6045S6R8MT?

The inductance is 6.8 µH.

What is the current rating for this inductor?

This inductor has a current rating of 3 A.

What is the maximum DC resistance (DCR) of the SWPA6045S6R8MT?

The maximum DC resistance is 40mOhm.

What type of construction does this inductor have?

It is a shielded, drum core, wirewound inductor.

What are the operating temperature limits for this component?

The operating temperature range is -40°C to 125°C.

How is the SWPA6045S6R8MT mounted?

This inductor is designed for surface mount.
