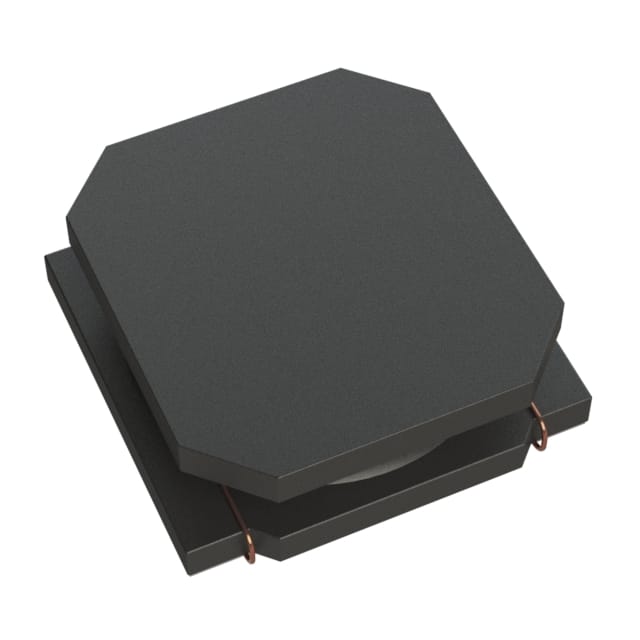

SWPA5020S2R2NT The SUNLORD SWPA5020S2R2NT is a shielded, wirewound fixed inductor with a 2.2 µH inductance and a 2.9A current rating. It features a low DC resistance of 42mOhm Max and is designed for surface mount applications.
Mfr Part #:

SWPA5020S2R2NT

Available from 1 distributors
Mfr Name: Sunlord
Sunlord
The SUNLORD SWPA5020S2R2NT is a shielded, wirewound fixed inductor with a 2.2 µH inductance and a 2.9A current rating. It features a low DC resistance of 42mOhm Max and is designed for surface mount applications.
✓ Total Stock: 460 pcs
$ Price Range: $0.18

SWPA5020S2R2NT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
460 pcs
On Request
460 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SWPA5020S2R2NT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

SWPA5020S2R2NT Description

Short technical summary and product information.

This SUNLORD SWPA5020S2R2NT is a shielded, drum core, wirewound fixed inductor. It offers an inductance value of 2.2 µH with a tolerance of ±30% and a maximum DC resistance of 42mOhm. The component is rated for a current of 2.9A and operates within a temperature range of -40°C to 125°C.



Designed for surface mounting, this inductor has dimensions of 5.00mm L x 5.00mm W x 2.00mm H. Its ferrite material construction and shielded design make it suitable for various electronic applications requiring stable inductance and current handling. The part operates at frequencies up to 57MHz.



Compliance includes RoHS3, MSL 1, and REACH unaffected status, though these are currently unverified.

SWPA5020S2R2NT Quick Information

Product Type: Fixed Inductor
Series: SWPA
Canonical Name: SUNLORD SWPA5020S2R2NT Drum Core, Wirewound Shielded Fixed Inductor 2.2 µH ±30% 2.9A ±42mOhm Surface Mount
Subcategory: Wirewound Inductor

SWPA5020S2R2NT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWPA5020S2R2NT Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

SWPA5020S2R2NT Features

  • Shielded wirewound drum core inductor.
  • 2.2 µH inductance with ±30% tolerance.
  • Rated for 2.9A current with 42mOhm DCR.
  • Surface mountable with 5.00mm x 5.00mm footprint.
  • Operates from -40°C to 125°C.

SWPA5020S2R2NT Applications

  • Ideal for power supply filtering circuits.
  • Suitable for DC-DC converter applications.
  • Used in signal processing modules.
  • Applicable in RF circuits requiring shielding.
  • General purpose inductive component.

SWPA5020S2R2NT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the SWPA5020S2R2NT?

The inductance of the SWPA5020S2R2NT is 2.2 µH.

What is the current rating for the SWPA5020S2R2NT?

The current rating for the SWPA5020S2R2NT is 2.9 A.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance (DCR) is 42mOhm.

What is the operating temperature range for the SWPA5020S2R2NT?

The operating temperature range is -40°C to 125°C.

How is the SWPA5020S2R2NT mounted?

The SWPA5020S2R2NT is designed for surface mounting.

Is the SWPA5020S2R2NT shielded?

Yes, the SWPA5020S2R2NT is a shielded inductor.

What are the physical dimensions of the SWPA5020S2R2NT?

The dimensions are 5.00mm in length, 5.00mm in width, and 2.00mm in height.
