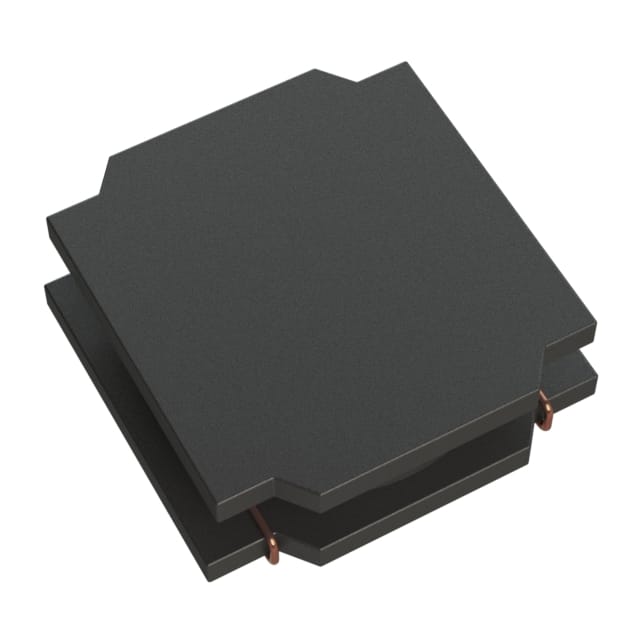

SWPA4020S150MT The SUNLORD SWPA4020S150MT is a shielded, surface mount fixed inductor. It offers a 15µH inductance and a current rating of 770mA.
Mfr Part #:

SWPA4020S150MT

Available from 2 distributors
Mfr Name: Sunlord
Sunlord
The SUNLORD SWPA4020S150MT is a shielded, surface mount fixed inductor. It offers a 15µH inductance and a current rating of 770mA.
✓ Total Stock: 3,065 pcs
$ Price Range: $0.52

SWPA4020S150MT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,365 pcs
On Request
2365 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
700 pcs
On Request
700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SWPA4020S150MT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

SWPA4020S150MT Description

Short technical summary and product information.

This SUNLORD SWPA4020S150MT is a fixed inductor featuring a drum core, wirewound construction. It is shielded and designed for surface mount applications.



Key electrical specifications include an inductance of 15 µH with a tolerance of ±20%, a current rating of 770 mA, and a maximum DC resistance of 299 mOhm. The inductor operates over a temperature range of -40°C to 125°C and has a frequency rating of 24MHz.



The component has a ferrite material composition and measures 4.00mm in length and width, with a height of 2.00mm. It is classified as RoHS3 Compliant, MSL 1, and REACH Unaffected, though these compliance statuses are unverified.



This part is suitable for various electronic circuits requiring stable inductance and current handling capabilities in a compact SMD package.

SWPA4020S150MT Quick Information

Product Type: Fixed Inductor
Canonical Name: SUNLORD SWPA4020S150MT Drum Core, Wirewound Fixed Inductor
Subcategory: Drum Core, Wirewound

SWPA4020S150MT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWPA4020S150MT Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

SWPA4020S150MT Features

  • Shielded wirewound drum core inductor.
  • 15µH inductance with ±20% tolerance.
  • Rated for 770mA current.
  • Low 299mOhm maximum DCR.
  • Compact 4x4x2mm SMD package.

SWPA4020S150MT Applications

  • Ideal for power supply filtering.
  • Suitable for DC-DC converters.
  • Used in signal processing circuits.
  • Applicable in consumer electronics.

SWPA4020S150MT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the SWPA4020S150MT?

The inductance is 15 µH.

What is the current rating for the SWPA4020S150MT?

The current rating is 770 mA.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DC resistance is 299 mOhm.

What is the operating temperature range for the SWPA4020S150MT?

The operating temperature range is -40°C to 125°C.

How is the SWPA4020S150MT mounted?

It is a surface mount component.
