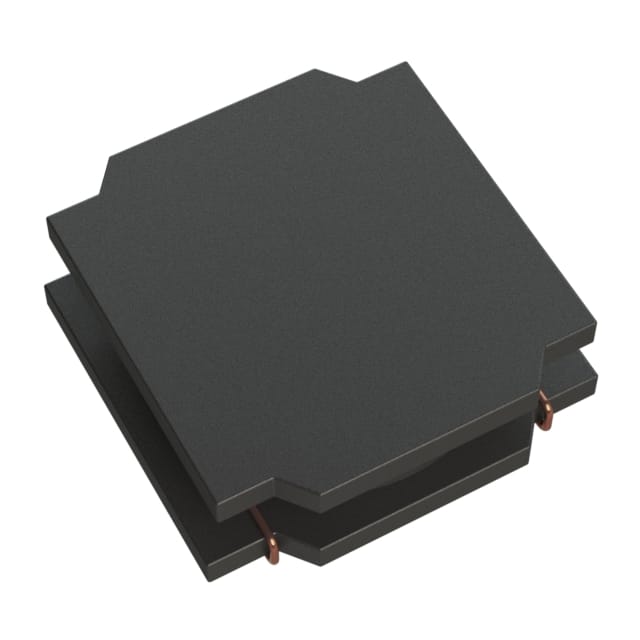

SWPA3010S100MT The Sunlord SWPA3010S100MT is a shielded, wirewound fixed inductor offering 10µH inductance and a 580mA current rating. It is designed for surface mount applications.
Mfr Part #:

SWPA3010S100MT

Available from 2 distributors
Mfr Name: Sunlord
Sunlord
The Sunlord SWPA3010S100MT is a shielded, wirewound fixed inductor offering 10µH inductance and a 580mA current rating. It is designed for surface mount applications.
✓ Total Stock: 1,612 pcs
$ Price Range: $0.18

SWPA3010S100MT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SWPA3010S100MT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

SWPA3010S100MT Description

Short technical summary and product information.

The Sunlord SWPA3010S100MT is a fixed inductor featuring a drum core and wirewound construction. It provides an inductance value of 10 µH with a tolerance of ±20%. This shielded inductor is rated for a current of 580mA and has a maximum DC resistance of 520 mOhm.



Designed for surface mounting, the SWPA3010S100MT has compact dimensions of 3.00mm in length, 3.00mm in width, and 1.00mm in height. It operates within a temperature range of -40°C to 125°C and has a self-resonant frequency of 39MHz. The ferrite material contributes to its performance characteristics.



This component is suitable for various electronic circuits requiring stable inductance and current handling capabilities. Its SMD package facilitates automated assembly processes.

SWPA3010S100MT Quick Information

Product Type: Fixed Inductor
Series: SWPA3010S
Canonical Name: Sunlord SWPA3010S100MT Drum Core, Wirewound Fixed Inductor
Subcategory: Power Inductors

SWPA3010S100MT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWPA3010S100MT Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

SWPA3010S100MT Features

  • Shielded wirewound drum core inductor.
  • 10µH inductance with ±20% tolerance.
  • Rated for 580mA current.
  • Compact 3.0x3.0x1.0mm SMD package.
  • Ferrite material construction.

SWPA3010S100MT Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for compact electronic designs.
  • Applications requiring stable inductance.

SWPA3010S100MT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the SWPA3010S100MT?

The inductance is 10µH.

What is the current rating of the SWPA3010S100MT?

The rated current is 580mA.

What is the DC resistance of the SWPA3010S100MT?

The maximum DC resistance is 520mOhm.

What is the self-resonant frequency of the SWPA3010S100MT?

The self-resonant frequency is 39MHz.

What is the package size of the SWPA3010S100MT?

The package is surface mount, nonstandard, with dimensions 3.00mm x 3.00mm x 1.00mm.

What is the operating temperature range of the SWPA3010S100MT?

The operating temperature range is -40°C to 125°C.

What is the inductance tolerance of the SWPA3010S100MT?

The tolerance is ±20%.
