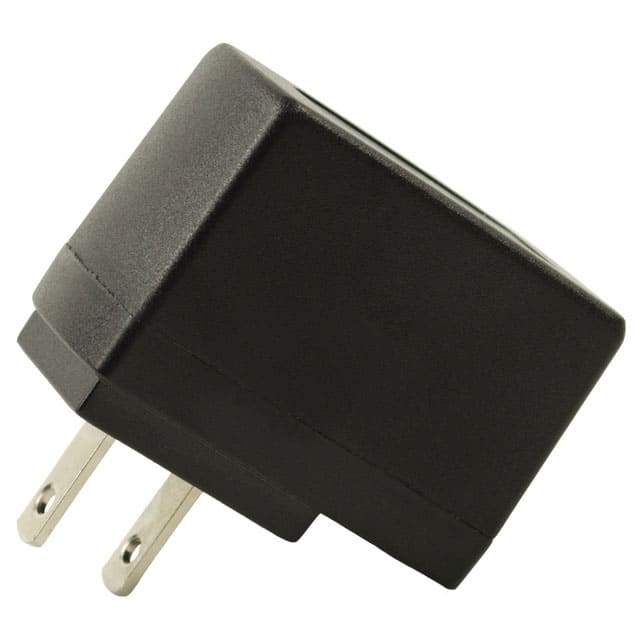

SWM6-9-NH-I38 The CUI Inc. SWM6-9-NH-I38 is a 6W AC/DC wall mount adapter providing a 9VDC output. It features a NEMA 1-15P input connector and a USB A receptacle output.
Mfr Part #:

SWM6-9-NH-I38

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SWM6-9-NH-I38 is a 6W AC/DC wall mount adapter providing a 9VDC output. It features a NEMA 1-15P input connector and a USB A receptacle output.
Stock on Request

SWM6-9-NH-I38 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
Medical Grade
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Voltage
Width
View Similar Products (0)

SWM6-9-NH-I38 Description

Short technical summary and product information.

The CUI Inc. SWM6-9-NH-I38 is a versatile AC/DC wall mount adapter designed for various applications, including medical devices. It delivers a stable 9VDC output with a maximum current of 660mA, providing a total power of 6W.



This adapter meets Level VI efficiency standards, ensuring optimal energy consumption. It operates within a temperature range of 0°C to 40°C and features a compact design with dimensions of 55.6mm x 27.1mm x 37.2mm. The input connector is a standard NEMA 1-15P, suitable for North American outlets, while the output is a convenient USB A receptacle.



Compliance is assured with standards such as C22.2 No. 60601-1, 55011 Class B, 55032 Class B, and others, along with approvals from agencies like UL, FCC, and CSA. The adapter is designed as a Class II, Wall Mount unit.

SWM6-9-NH-I38 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Series: SWM6
Canonical Name: AC/DC Wall Mount Adapter
Subcategory: Wall Mount

SWM6-9-NH-I38 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWM6-9-NH-I38 Features

  • Provides 9VDC output at 6W power.
  • Level VI efficiency rating for energy savings.
  • Compact wall mount design for convenience.
  • NEMA 1-15P input and USB A receptacle output.
  • Suitable for medical applications.

SWM6-9-NH-I38 Applications

  • Ideal for medical equipment power.
  • Powers portable electronic devices.
  • Suitable for general purpose AC/DC needs.
  • Used in consumer electronics.

SWM6-9-NH-I38 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the SWM6-9-NH-I38?

The adapter accepts a 100-240 VAC input.

What output voltage and current does the SWM6-9-NH-I38 provide?

It provides 9V DC at 660mA, with 6W total output power.

What efficiency level does the SWM6-9-NH-I38 meet?

It meets Level VI efficiency with 100mW maximum no-load power consumption.

What are the dimensions of the SWM6-9-NH-I38?

The adapter measures 55.6mm x 27.1mm x 37.2mm (2.19" x 1.07" x 1.46").

What is the operating temperature range of the SWM6-9-NH-I38?

The adapter operates from 0°C to 40°C.

What input and output connectors does the SWM6-9-NH-I38 use?

It uses a NEMA 1-15P input plug and a USB A receptacle output.

What applications is the SWM6-9-NH-I38 designed for?

It is designed for medical applications.
