| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

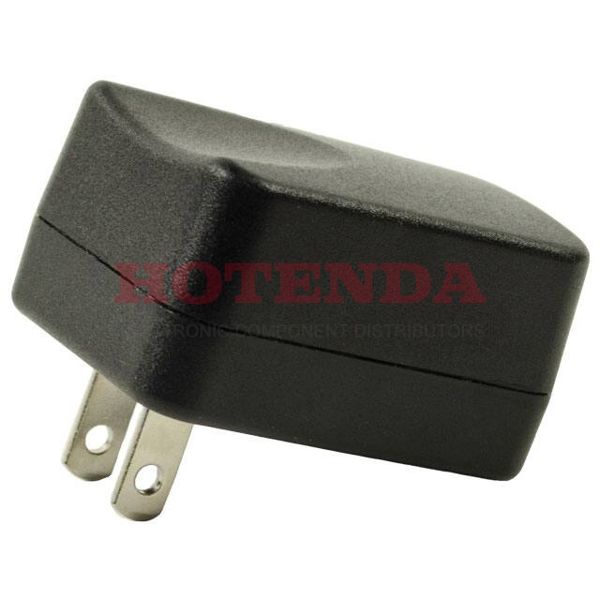

The CUI Inc. SWM6-6-NV-I38 is an AC/DC wall mount adapter designed for reliable power conversion. It delivers a stable 6V output with a maximum current of 1A, providing a total power of 6W. This adapter meets Level VI efficiency standards, ensuring energy savings.
Designed for use in North America, it features a NEMA 1-15P input connector and a USB A receptacle output. The adapter operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 100mW maximum. Its compact dimensions (53.5mm x 41.2mm x 28.2mm) and wall mount (Class II) form factor make it suitable for various applications, including medical devices.
This model is approved by agencies including CB Scheme, CSA, EN, FCC, IEC, PSE, and UL, adhering to standards such as C22.2 No. 60601-1 and 60950-1. It is RoHS3 compliant and has an MSL rating of 1.
The SWM6-6-NV-I38 adapter provides a 6V output voltage and a maximum output current of 1A.
The SWM6-6-NV-I38 adapter has a power rating of 6W.
The input voltage range for the SWM6-6-NV-I38 adapter is 90V to 264VAC.
The SWM6-6-NV-I38 adapter meets Level VI efficiency standards.
The operating temperature range for the SWM6-6-NV-I38 adapter is 0°C to 40°C.
The SWM6-6-NV-I38 adapter features a NEMA 1-15P input connector and a USB A receptacle output connector.
The SWM6-6-NV-I38 adapter is RoHS3 Compliant.
