| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

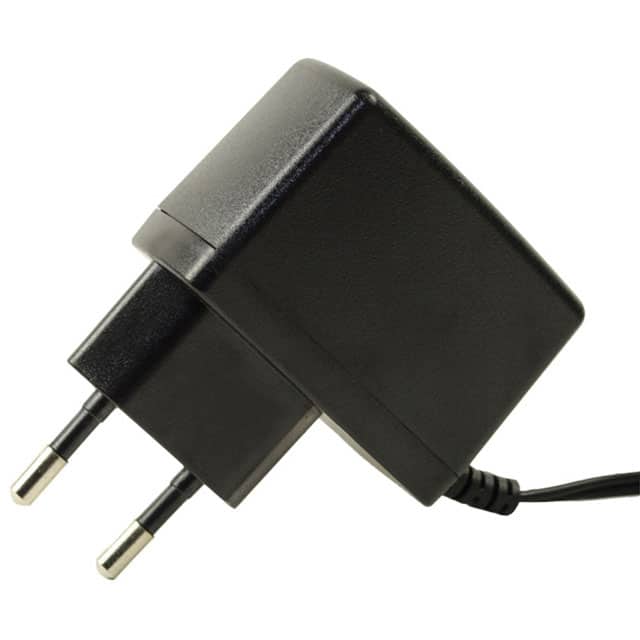

The CUI Inc. SWM6-E series AC-DC power supply, model SWM6-5-EH-P5, provides a 5V output with a maximum current of 1.2A, delivering up to 6W of power. This compact unit features a universal input range of 90-264 Vac and operates with high efficiency, meeting DOE Level VI and CoC Tier 2 standards.
Designed for reliability, the SWM6-5-EH-P5 includes over-voltage, over-current, and short-circuit protections with auto-recovery. It boasts significant safety features, including 4000 Vac isolation voltage and compliance with EN 60601-1 4th edition for medical applications, along with 2 MOPP compliance. The power supply operates within a temperature range of 0°C to 40°C.
This wall mount adapter comes with a CEE 7/16 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its dimensions for horizontal models are 55.0mm x 25.0mm x 36.7mm. The unit is RoHS3 compliant and suitable for various applications requiring a stable and safe power source.
90-264 Vac.
Wall mount (Class II) with dimensions 55x25x36.7 mm (horizontal) or 53x41x46 mm (vertical).
0°C to 40°C.
1.2A maximum.
Level VI and CoC Tier 2.
TUV certified to 60601-1 (medical).
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
