| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

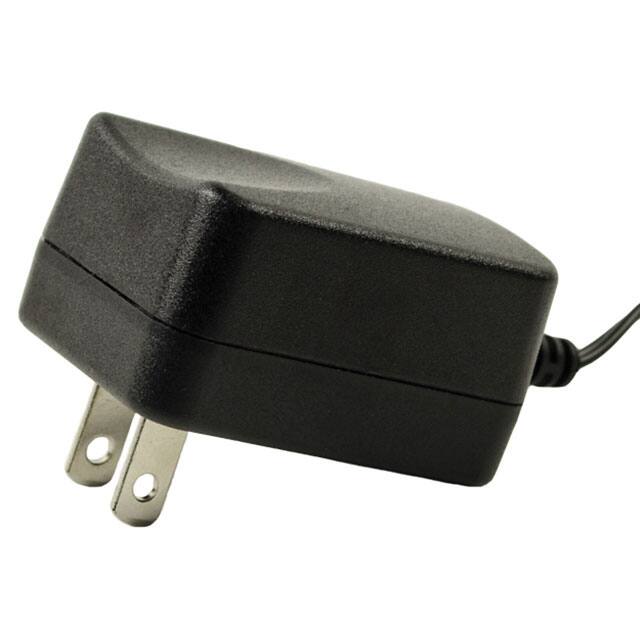

The CUI Inc. SWM6-12-NV-P6 is a compact AC/DC wall mount adapter designed for reliable power delivery. It provides a stable 12V output with a maximum power rating of 6W, making it suitable for various electronic devices.
This adapter meets Level VI efficiency standards, ensuring reduced energy consumption and heat generation. It features a NEMA 1-15P input connector for North American regions and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is from 0°C to 40°C.
Designed with medical applications in mind, the SWM6-12-NV-P6 also complies with several safety and EMC standards, including C22.2 No. 60601-1, 55011 Class B, and 60601-1. Its dimensions are 55.0mm x 25.0mm x 36.7mm, and it utilizes a positive center polarization for the output.
Key specifications include a 500mA output current, 100mW maximum no-load power consumption, and a cord length of 1.50m. The unit is classified as Class II for safety.
Wall Mount (Class II).
0°C to 40°C.
12V at 500mA (6W).
Level VI.
Input: NEMA 1-15P; Output: barrel plug 2.5mm ID x 5.5mm OD x 9.5mm.
CB Scheme, CSA, EN, FCC, IEC, PSE, UL.
100mW max.
