| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

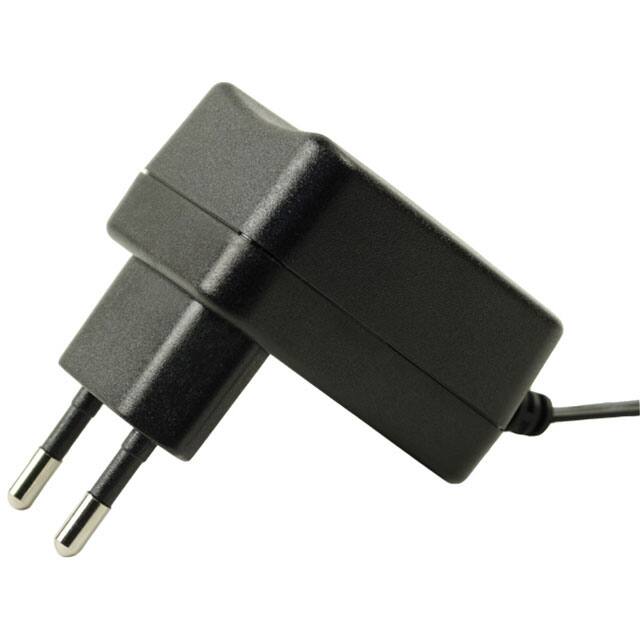

The CUI Inc. SWM6-12-EV-P6 is a compact AC/DC power supply designed for wall mount applications. It delivers a single regulated 12V DC output at up to 6W of power, with a maximum output current of 0.5A.
This power supply operates from a universal input voltage range of 90-264 Vac and features a CEE 7/16 input connector. It meets DOE Level VI and CoC Tier 2 efficiency standards, ensuring energy efficiency. The unit includes over-voltage and short-circuit protections for reliable operation.
Designed for medical applications, the SWM6-12-EV-P6 complies with EN 60601-1 4th edition and offers 2 MOPP isolation. Its compact dimensions (53.5mm x 41.2mm x 28.2mm) and wall mount form factor make it suitable for space-constrained designs. The output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug with a 1.50m cord.
The SWM6-12-EV-P6 provides a 12V DC output voltage with a maximum output current of 0.5A.
The maximum power output for the SWM6-12-EV-P6 is 6W.
The SWM6-12-EV-P6 accepts a universal input voltage range of 90-264 Vac.
The SWM6-12-EV-P6 meets DOE Level VI and CoC Tier 2 efficiency standards.
The dimensions for vertical models are 53 x 41 x 46 mm.
The operating temperature range for the SWM6-12-EV-P6 is 0°C to 40°C.
Yes, the SWM6-12-EV-P6 is designed for medical applications and is EN 60601-1 4th edition compliant with 2 MOPP isolation.
